SHANDONG SAIGAO GROUP CORPORATION

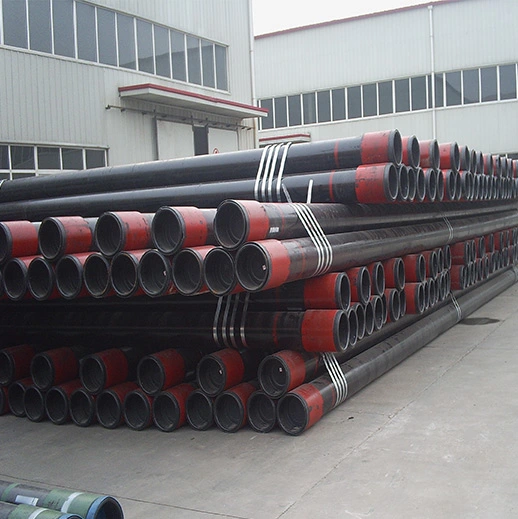

10-3/4'' Casing Pipe

10-3/4'' Casing Pipe

Oil wells for oil wells are mainly used for petroleum tubing connection and various fittings connected with petroleum oil pipes. It is a kind of sealing filler (such as hemp, yarn, asbestos fiber, rubber, etc.) that does not need to be coated. The thread sealant achieves a sealed conical thread. When the inner and outer threads are combined with each other, the centering and guiding functions are good, the assembly and disassembly are convenient, the large axial force can be withstood, the interchangeability is good, the service life is long, and the utility model can be repeatedly used repeatedly. Due to these characteristics, in the petroleum industry, the amount is large and the use is very wide, especially the reliability of the water pressure seal is more important in the use.


Features of 10-3/4'' Casing Pipe:

273.05mm(10 3/4" )  Seamless Casing pipe

API-5CT Casing Pipe Steel grade: J55/K55/N80/L80/P110/C95/13Cr/28Cr


Threads: BTC, LTC, STC,PRMIUM CONNECTION

Length range: R1, R2, R3

If you interested in our products, feel free to contact us.

Technical Specifications of 10-3/4'' Casing Pipe:

OD mmIb/ftGradeW. T  short  longbuttress
273.05(10 3/4" )32.75H7.09YES

40.5H, J, K8.89YES
YES
45.5J, K10.16YES
YES
51J, K, C, L, N, P11.43YES
YES
55.5C, L, N, P12.57YES
YES
60.7P, Q13.84YES
YES
65.7P, Q15.11YES
YES

a: Buttress casing is available with regular, special clearance couplings or special clearance couplings with special bevel.

P= Plain end; S= Short round thread; L= Long round thread; B= Buttress thread.
