Gardner Denver Modules

Gardner Denver Modules

An expendable needs to be dependable until its replacement. This is the very essence of the approach at ShalePumps towards all components, classified as expendables in Oil Exploration and Production. Mud Pump Fluid End Modules are absolutely vital to the operations of a Mud Pump. Machined from the highest quality of forged material, the fluid end modules have a very high threshold for cracking. This lends the fluid end modules longer life which in turn has a positive effect on overall operations.

Lesser downtime for maintenance and replacement are two crucial factors that enhance operational efficiency of the mud pumps.

All fluid end modules that leave the plant at ShalePumps got through a battery of tests that include hydrostatic testing. With assured integrity of the materials that go into all fluid end modules, the mud pumps can be operated with greater confidence.


Technical Specification of Gardner Denver Modules:

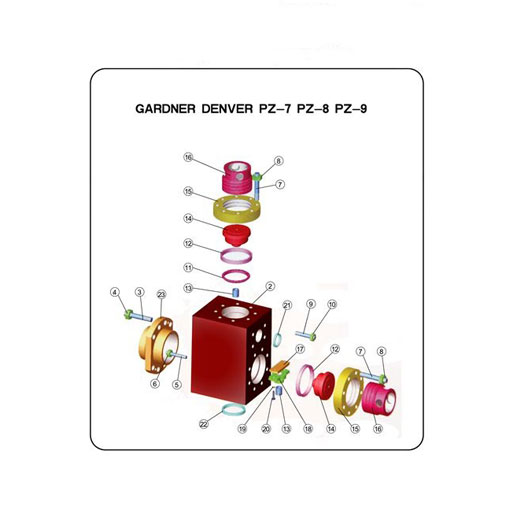

GARDNER DENVER PZ7/8/9
ITEM #OEM PART #DESCRIPTIONQTY
1
FLUID END MODULE COMPLETE ASSEMBLY  (INCLUDES ITEMS 1-22 + 24)3
1A200PZL029F(D)FLUID END MODULE STUDDED   (INCLUDES 1-9 & 24)3
FLUID END MODULE ONLY
STUD SET (INCLUDE ITEM 2-9)
279L188STUD, FRAME & LINER CLAMP24
350B36NUT (FOR ABOVE)24
479L73STUD, FRAME72
550AQ30NUT (FOR ABOVE)72
679AL6STUD, VALVE COVER72
750B34NUT (FOR ABOVE)12
8202PZL110STUD, DISCHARGE MANIFOLD12
950B34NUT (FOR ABOVE)6
102011861RING, VALVE COVER GASKET EXPANDER6
112011862GASKET, VALVE COVER - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS)6
122007674BUSHING, VALVE GUIDE6
132011860COVER, VALVE3
142011699RING, VALVE COVER THREADED6
152011857CAP, VALVE COVER LOCK3
162011701PLATE, RETAINER3
172011700GUIDE, VALVE SUCTION6
1895W2WASHER, LOCK 1/2"  316SS6
19655EE06SSCREW 1/2"x1 3/4" 316SS HX HD C/S3
2025AL35GASKET, DISCHARGE MANIFOLD3
2125G41GASKET, SUCTION MANIFOLD3
221PV14CLAMP, LINER3
232011706ASSY., LOWER VALVE GUIDE (INCLUDES 12, 16 -19)24
24
CAPSCREW, SUCTION MANIFOLD - NOT SHOWN
25
WASHER, SUCTION MANIFOLD CAPSCREW LOCK24
