DYX-A Hydraulic Liner Hanger

DYX-A Hydraulic Liner Hanger

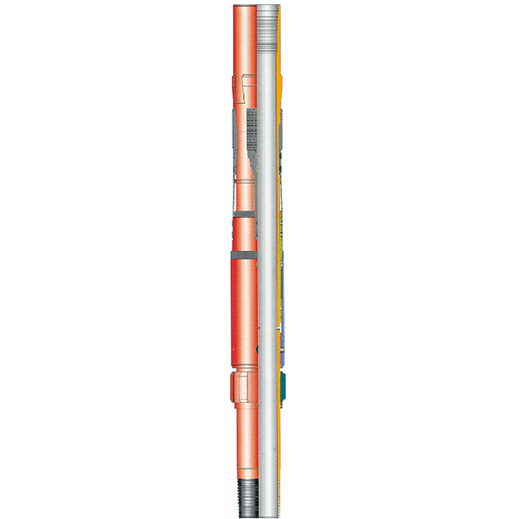

The DYX-A hydraulic liner hanger is hydraulically set by applying pressure through the run-in string. A setting ball is circulated or dropped to a ball seat built into the landing collar. Applied pressure acts on the internal piston and moves slips up the cone to the set position.


Features of DYX-A Hydraulic Liner Hanger

  • The DYX-A is to be set hydraulically, which is designed for in all types of wells.

  • Working with SQ setting-set carrier, the DYX-A is suitable for

  • applications in horizontal or highly-deviated wells.

  • The piston sealing element is made from nitrile/fluorine rubber for high pressure and temperature ratings.

  • Main parts are fabricated with high-strength alloy steel providing high burst/collapse resistance.


Application of DYX-A Hydraulic Liner Hanger

The hydraulic Liner hanger mainly realizes tail pipe suspension through hydraulic transmission. It is widely used in oil and gas wells, technical tail pipe of salt brine wells and geothermal wells and production tail pipe cementing. In the following cases, the tail pipe hanger is used for cementing:

  • It is possible to save a lot of casing and cost for deep wells and evaluation wells

  • Completion of the casing head and surface casing load

  • Improve long-term cement cementing operations to prevent low-pressure leakage

  • Quickly and easily seal the open hole section and the old well deepening cementing

  • Provide flexible completion methods and safer cementing operations

  • In the Rock salt well section, the tail pipe is used to enhance the sealing strength of the rock salt section

  • Seal the damaged section of the upper casing (corrosion, fracture)


Technical Specifications of DYX-A Hydraulic Liner Hanger

Specifications, mm

Φ244.5×Φ177.8/Φ139.7

Φ177.8×Φ127.0/Φ114.3

Rated Load, t

120

50

Sealing Capacity, MPa

25

25

Shearing Pressure of Pins, MPa

7~8

7~8

Casing Wall Thickness, mm

10.03

11.05

11.99

9.19

10.36

11.51

Casing Weight, kg/m

59.52

64.73

69.94

38.69

43.15

47.62

Body Max O.D., mm

215

152

Body Min I.D., mm

155

108
