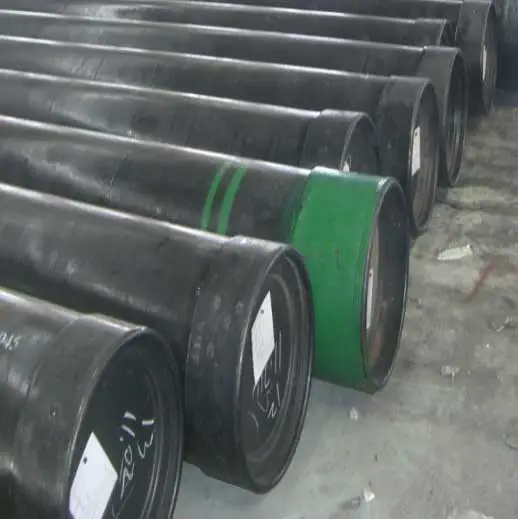

18-5/8'' Casing Pipe

18-5/8'' Casing Pipe

Oil well pipes, also known as oil special pipes, are the foundation of the petroleum industry. Casings, tubing and drill string components (drilling rods, drill collars, kelly bars, etc.) are collectively referred to as oil well pipes (OCTG).



Application of 18-5/8'' Casing Pipe:

Seamless casing pipe is inserted into a well bore and cemented in place to protect both subsurface formations and the well bore from collapsing and to allow drilling fluid to circulate and extraction to take place.


The cost of casing is a major part of the overall well cost, so selection of casing size, grade, connectors, and setting depth is a primary engineering and economic consideration. Saigao can manufacture and  supply API 5CT standard casing pipe with good quality and competitive price.


Technical Specifications of 18-5/8'' Casing Pipe:

18.5/8"(473.08mm)  API 5CT Seamless Casing pipe

API-5CT Casing Pipe Steel grade: J55/K55/N80/L80/P110/C95/13Cr/28Cr

Threads: BTC, LTC, STC,PRMIUM CONNECTION
Length range: R1, R2, R3
If you interested in our products, feel free to contact with me.

OD mm

Ib/ft

Grade

W. T

 STC

LTC

BTC

114.30(4 1/2" )

9.50

H, J, K

5.21

YES



10.50

J, K

5.69

YES


YES

11.60

J, K, C, L, N, P

6.35

YES

YES

YES

13.50

C, L, N, P

7.37


YES

YES

15.10

P, Q

8.56


YES

YES

127.00(5" )

11.50

J, K

5.59

YES



13.00

J, K

6.43

YES

YES

YES

15.00

J, K, C, L, N, P

7.52

YES

YES

YES

18.00

C, L, N, P, Q

9.19


YES

YES

21.40

C, L, N, P, Q

11.10


YES

YES

23.20

C, L, N, P, Q

12.14


YES

YES

24.10

C, L, N, P, Q

12.70


YES

YES

139.70(5 1/2" )

14.00

H, J, K

6.20

YES



15.50

J, K

6.98

YES

YES

YES

17.00

J, K, C, L, N, P

7.72

YES

YES

YES

20.00

C, L, N, P

9.17


YES

YES

23.00

C, L, N, P, Q

10.54


YES

YES

168.28(6 5/8" )

20.00

H, J, K

7.32

YES

YES

YES

24.00

J, K, C, L, N, P

8.94

YES

YES

YES

28.00

C, L, N, P

10.59


YES

YES

32.00

C, L, N, P, Q

12.06


YES

YES

177.80(7" )

20.00

H, J, K

6.91

YES



23.00

J, K, C, L, N

8.05

YES

YES

YES

26.00

J, K, C, L, N, P

9.19

YES

YES

YES

29.00

C, L, N, P

10.36


YES

YES

32.00

C, L, N, P

11.51


YES

YES

35.00

C, L, N, P, Q

12.65


YES

YES

38.00

C, L, N, P, Q

13.72


YES

YES

193.68(7 5/8" )

24.00

H

7.62

YES



26.40

J, K, C, L, N

8.33

YES

YES

YES

29.70

C, L, N, P

9.52


YES

YES

33.70

C, L, N, P

10.92


YES

YES

39.00

C, L, N, P, Q

12.70


YES

YES

42.80

C, L, N, P, Q

14.27


YES

YES

45.30

C, L, N, P, Q

15.11


YES

YES

47.10

C, L, N, P, Q

15.88


YES

YES

196.85(7 3/4" )

46.10

C, L, N, P, Q

15.11




219.08(8 5/8" )

24.00

J, K

6.71

YES



28.00

H

7.72

YES



32.00

H, J, K

8.94

YES

YES

YES

36.00

J, K, C, L, N

10.16

YES

YES

YES

40.00

C, L, N, P

11.43


YES

YES

44.00

C, L, N, P

12.70


YES

YES

49.00

C, L, N, P, Q

14.15


YES

YES

244.48(9 5/8" )

32.30

H

7.92

YES



36.00

H, J, K

8.94

YES

YES

YES

40.00

J, K, C, L, N

10.03


YES

YES

43.50

C, L, N, P

11.05


YES

YES

47.00

C, L, N, P, Q

11.99


YES

YES

53.50

C, L, N, P, Q

13.84


YES

YES

273.05(10 3/4" )

32.75

H

7.09

YES



40.50

H, J, K

8.89

YES


YES

45.50

J, K

10.16

YES


YES

51.00

J, K, C, L, N, P

11.43

YES


YES

55.50

C, L, N, P

12.57

YES


YES

60.70

P, Q

13.84

YES


YES

65.70

P, Q

15.11

YES


YES

298.45(11 3/4" )

42.00

H

8.46

YES



47.00

J, K, M

9.53

YES


YES

54.00

J, K, M

11.05

YES


YES

60.00

J, K, M, L, N, C, P, Q

12.42

YES


YES

339.7(13 3/8" )

48.00

H

8.38

YES



54.50

J, K

9.65

YES


YES

61.00

J, K

10.92

YES


YES

68.00

J, K, C, L, N, P

12.19

YES


YES

72.00

C, L, N, P, Q

13.06

YES


YES

406.40(16" )

65.00

H

9.53

YES



75.00

J, K, M

11.13

YES


YES

84.00

J, K, M

12.57

YES


YES

473.08(1.5/8" )

87.50

H, J, K, M

11.05

YES

YES

YES

508.00(20" )

94.00

H, J, K

11.13

YES

YES

YES

106.50

J, K

12.70

YES

YES

YES

133.00

J, K

16.13

YES

YES

YES


a: Buttress casing is available with regular, special clearance couplings or special clearance couplings with special bevel.
P= Plain end; S= Short round thread; L= Long round thread; B= Buttress thread.
