SSX-A Hydraulic Liner Hanger

SSX-A Hydraulic Liner Hanger

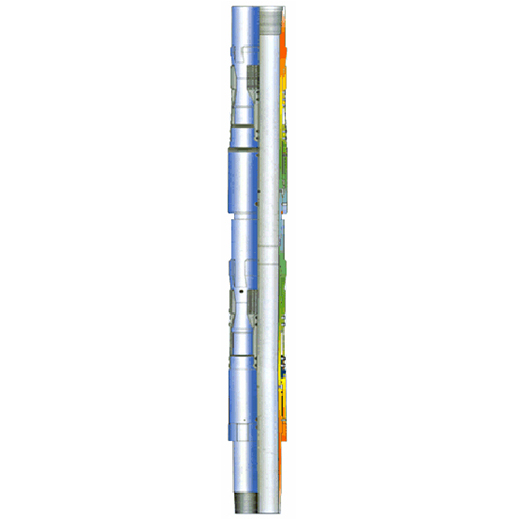

Model SSX-AF 9 5/8"×7" Liner Hanger Packer combines a liner packer with a liner hanger. It is comprised of liner hanger body assembly, packer assembly, seal assembly, setting tool, polished bore receptacle, landing collar, pump-down plug, liner wiper plug, etc.


The liner hanger is equipped with single hydraulic cylinder and single-row cones. The liner hanger is hydraulic-set and the packer weight-set.


Features of SSX-A Hydraulic Liner Hanger

  • The main parts of the line hanger are made of high-strength alloy steel, which ensures high mechanical performance and strong ability to hang heavy liner.

  • The liner hanger is hydraulic-set and applicable to various well conditions.

  • All of the pump-down plug, liner wiper plug and the landing collar have locking systems and are easily drillable.

  • The pack-off bushing can be pulled out with the setting tool and therefore saves time for drilling out.

  • The seal assembly contains a set of "W" packing rings that have perfect two-direction sealing capacity.

  • The gage rings on the liner hanger not only serve as rigid centralizers, but also protect the hydraulic cylinder and slips while running in.

  • To release the setting tool from the liner, simply apply 5 to 10 t load to the drill string and rotate right hand.


Application of SSX-A Hydraulic Liner Hanger

The hydraulic Liner hanger mainly realizes tail pipe suspension through hydraulic transmission. It is widely used in oil and gas wells, technical tail pipe of salt brine wells and geothermal wells and production tail pipe cementing. In the following cases, the tail pipe hanger is used for cementing:

  • It is possible to save a lot of casing and cost for deep wells and evaluation wells.

  • Completion of the casing head and surface casing load

  • Improve long-term cement cementing operations to prevent low-pressure leakage

  • Quickly and easily seal the open hole section and the old well deepening cementing

  • Provide flexible completion methods and safer cementing operations

  • In the Rock salt well section, the tail pipe is used to enhance the sealing strength of the rock salt section

  • Seal the damaged section of the upper casing (corrosion, fracture)


Technical Specifications of SSX-A Hydraulic Liner Hanger:

Size (Csg x Liner)

Casing Weight

Max O.D.

in.

kg/m

lb/ft

mm

in.

16 x 11-3/4

125.01

84.00

373

14.685

13-3/8 x 10-3/4

90.78

61.00

308

12.126

101.20

68.00

11-3/4 x 8-5/8

96.73

65.00

265

10.433

10-3/4 x 7-5/8

67.71

45.50

240

9.449

75.90

51.00

82.59

55.50

10-3/4 x 7

75.90

51.00

242

9.528

82.59

55.50

9-5/8 x 7

59.53

40.00

215

8.465

64.74

43.50

69.94

47.00

7-5/8 x 5-1/2

44.20

29.70

165

6.496

50.15

33.70

58.04

39.00
