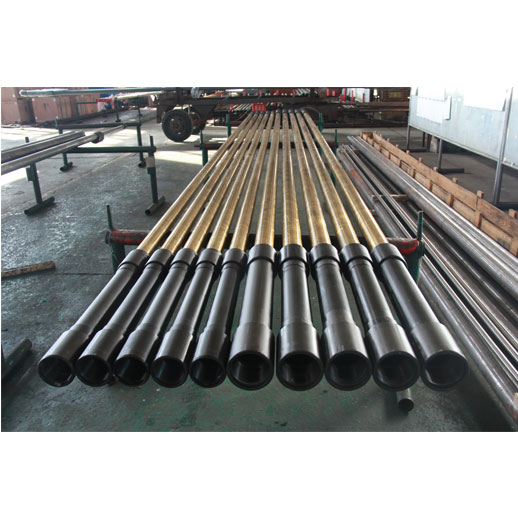

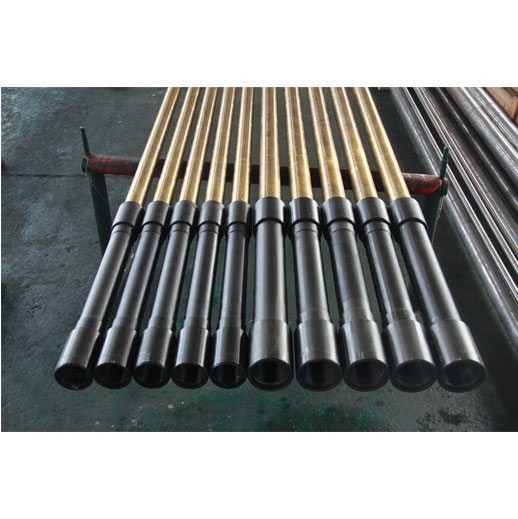

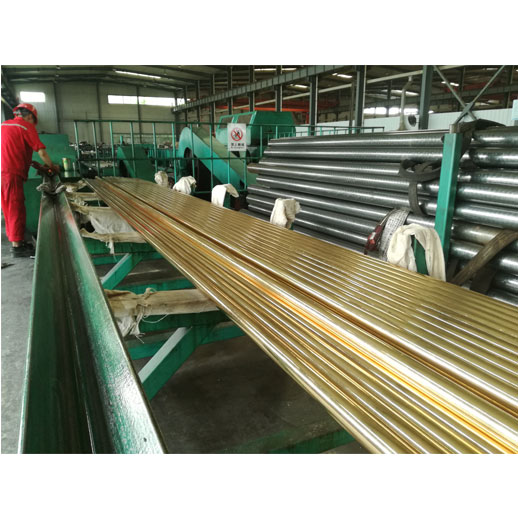

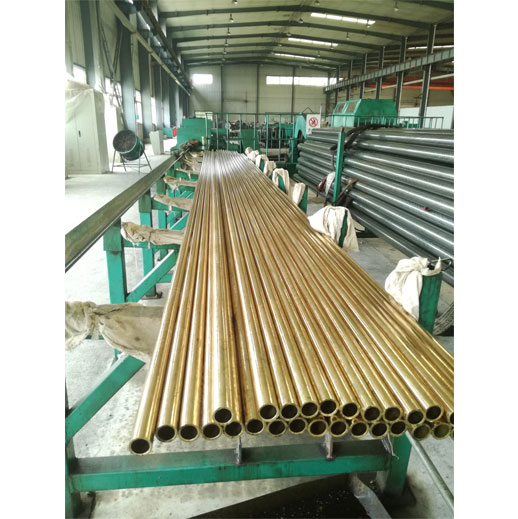

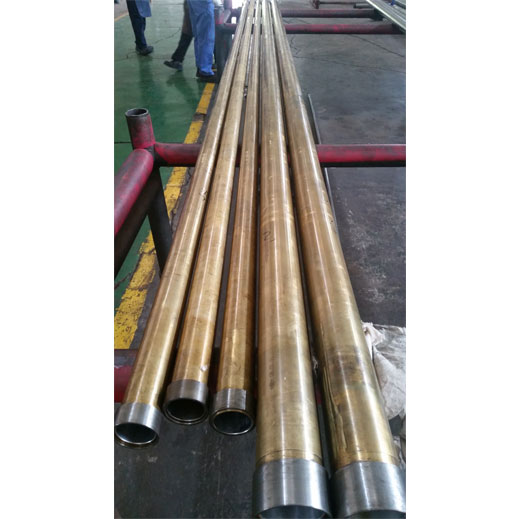

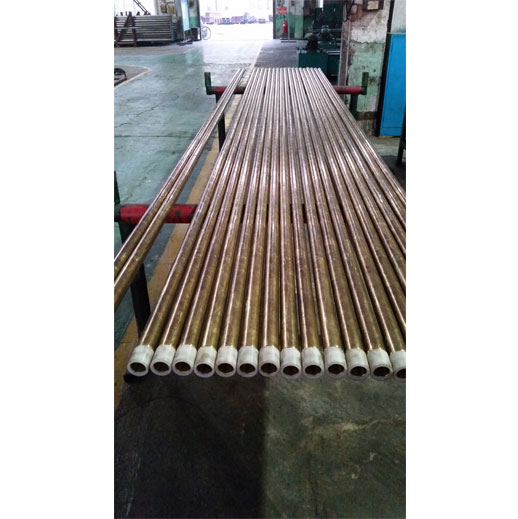

Brass Pump Barrel

Brass Pump Barrel

Specification:Φ32、Φ38、Φ44、Φ57、Φ70、Φ83、Φ95、Φ108、Φ120、Φ140、Φ280 and non-certificated


Technical Specifications:

Barrel specification

Nominal Dia.mm(in)

I.D. Tolerance(mm)

Wall thickness

Material

Plunger specification

O.D. tolerance(mm)

Length

Φ32

31.75mm/

11/4”

±0.05

1.5mm

3.18mm

6.35mm

9.53mm

19.05mm

22.23mm

25.4mm

Carbon steel pipe(1020、1026、1045);

Brass pipe;

Alloy steel pipe(304、316、316L、S50100、4130、13Cr、P9 etc).

Φ32

±0.05

1.2m-1.8m

4’-6’

Φ38

38.10mm/

11/2”

±0.05

Φ38

±0.05

Φ44

44.45mm/

13/4”

±0.05

Φ44

±0.05

Φ50

50.8mm/

2”

±0.05

Φ50

±0.05

Φ57

57.15mm/

2 1/4”

±0.05

Φ57

±0.05

Φ70

69.85mm/

2 3/4”

±0.10

Φ70

±0.10

Φ83

82.55mm/

3 1/4”

±0.10

Φ83

±0.10

Φ95

95.25mm/

3 3/4”

±0.10

Φ95

±0.10

Φ108

107.95mm/

4 1/4”

±0.10

Φ108

±0.10

Φ220

219.075mm/8 5/8”

±0.10

Φ220

±0.10

Φ280

279.4mm/11”

±0.10
