  • EMSCO Modules

Mud Pump Modules

Saigao can make a full line of module assembly and fluid end expendables for popular mud pumps in the world, including continental emsco, national, Gardner Denver, Oilwell,  Ideco, Wheatly, Wilson, Wirth, OPI, Ellis Willianms, etc. The main products are sold to USA, middle Asia,Canada, Mexico, Middle east, & Russia.


Technical Specifications of EMSCO Modules:

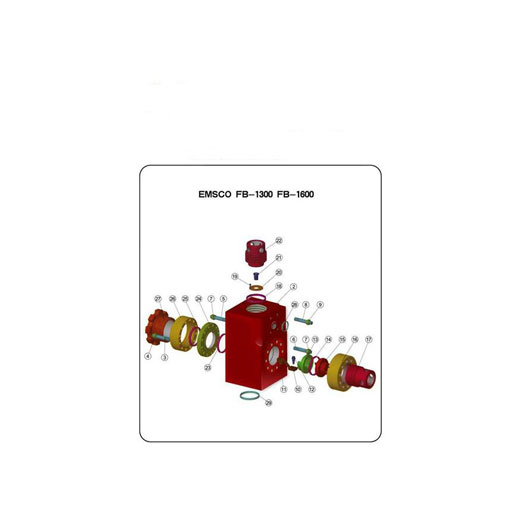

FB1300/1600
ITEM #OEM PART #DESCRIPTIONQTY
10-6316-0325-00FLUID END MODULE COMPLETE ASSY. (ITEMS 1-22, 24- 28)3
1A0-6316-0357-00FLUID END MODULE STUDDED * (ITEMS 1, 2, 3, 4, 4A, 5, 6, 7, & 28)3
FLUID END MODULE ONLY3
STUD SET (ITEM 2-7 AND 28)
2
STUD, MODULE TO LINER CLAMP36
30-7601-0610-18LINER CLAMP STUD NUT36
40-7507-2201-00POWER FRAME STUD18
4A0-7507-2210-00STUD, MODULE TO CYLINDER30
50-7601-0630-17NUT (FOR ABOVE)48
60-7507-2108-00STUD, MODULE TO DISC. MANIFOLD12
70-7601-0630-24NUT (FOR ABOVE)12
80-6316-0354-00GUIDE, LOWER VALVE (WITH BUSHING)3
90-6316-0096-00BUSHING, LOWER VALVE GUIDE3
100-6316-0360-00LOCKBOLT, LOWER VALVE GUIDE3
110-6316-0363-00ALIGNMENT RING3
120-6316-0369-00GASKET, HEAD SEAL3
130-6316-0364-90PLUG, CYLINDER HEAD3
140-6316-0361-00RING, THREADED CYLINDER HEAD3
150-6316-0362-00CAP, THREADED CYLINDER HEAD3
160-6316-0092-00GASKET, VALVE COVER - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS)3
170-7501-0051-00SCREW, RETAINER UPPER)12
180-6397-0603-00PLATE, RETAINER (UPPER)3
190-6397-0575-00GUIDE, UPPER VALVE3
200-6316-0039-00COVER, VALVE POT3
210-6316-0373-00GASKET, WEAR PLATE - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS)3
220-6316-0365-00PLATE, WEAR3
230-6316-0373-00GASKET, LINER - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS)3
240-6316-0366-00RING, LINER THREADED3
250-6316-0367-20LINER LOCK3
260-7602-1600-25GASKET, DISCHARGE MANIFOLD3
270-7602-1600-61GASKET, SUCTION MANIFOLD3
280-7601-0333-30SUCTION MANIFOLD CAPSCREW  (NOT SHOWN)
