  • TLL Type Elastic Sleeve Pin Coupling With Brake Wheel

TLL Type Elastic Sleeve Pin Coupling With Brake Wheel

TLL elastic sleeve pin coupling with brake wheel is usually called LTZ type with brake wheel coupling. The coupling accessories include: brake wheel, nut, washer, retaining ring, elastic sleeve, pin, half coupling.

TLL elastic sleeve pin coupling with brake wheel is suitable for connecting two coaxial transmission shafts. It has certain compensation for the relative displacement of the two shafts and ordinary shock absorption performance. The working temperature is -20-+70 and the nominal torque is 6.3-16000N.m..


Model of TLL Type Elastic Sleeve Pin Coupling With Brake Wheel

TLL1, TLL2, TLL3, TLL4, TLL5, TLL6, TLL7, TLL8, TLL9

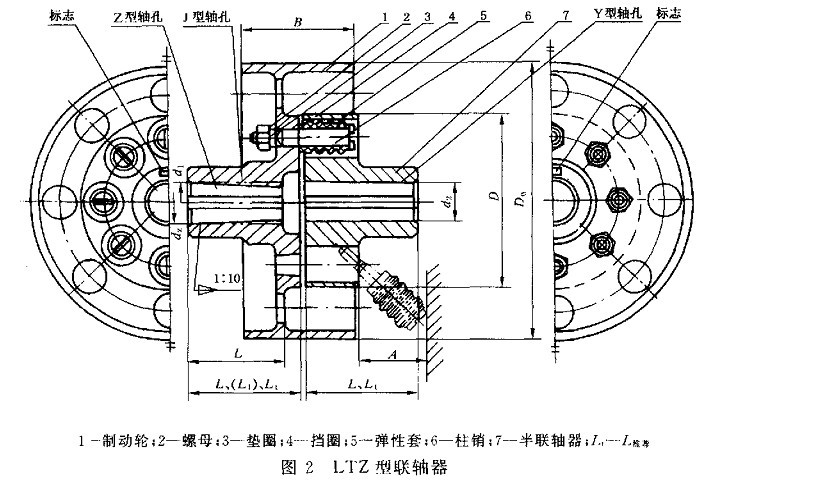

Type Elastic Sleeve Pin Coupling With Brake Wheel


Basic parameters and main dimensions of LTZ (formerly TLL) type elastic sleeve pin coupling with brake wheel (GB/T 4323-2002) (unit: mm)

Specifications

Nominal torque

Tn(N.m)

Allowable speed

[n](r/min)

Shaft hole diameter

d1 d2 dz

Shaft hole length

D0

D

B

S

A

Moment of inertia Kg.m2

Weight

Kg

Y Model

J、J1、Z Model

L

L1

L

LTZ5

125

3800

25 28

62

44

62

200

130

85

5

45

0.042

13.38

30 32

82

60

82

35

LTZ6

250

3000

32 35

250

160

105

5

0.105

21.25

38

40 42

112

84

112

LTZ7

500

2400

40 42

315

190

132

6

0.252

35

45 48

LTZ8

710

2400

45 48

224

6

65

0.347

45.14

50 55

56

60 63

142

107

142

LTZ9

1000

2400

50 55

112

84


315

250

168

6

65

0.407

58.67

56


60 63

142

107

142

65 70

LTZ10

2000

1900

63 65

400

315

8

80

1.305

100.3

70 71

75

80 85

172

132

172

90 95

LTZ11

4000

1500

80 85

500

400

210

10

100

4.33

198.73

90 95

100 110

212

167

212

LTZ12

8000

1200

100 110

120 125

630

475

265

12

130

12.49

370.6

130

252

202

252

LTZ13

16000

1000

120 125

212

167

212

710

600

298

14

180

30.48

641.13

130 140

252

202

252

150

160 170

302

242

302
