  • Wheel Sleeve Coupling

Wheel Sleeve Coupling

The sleeve coupling of the opposite wheel uses a common sleeve and uses rigid couplings such as keys, splines or taper pins to realize the connection of the two shafts. The sleeve coupling has simple structure, convenient manufacture, low cost, and small radial size, but it is inconvenient to assemble and disassemble, and the shaft needs to be moved axially. Short is suitable for low speed, light load, no impact load, work balance and connection of upper dimension shaft. The maximum working speed is generally not more than 250r/min. The sleeve coupling does not have axial, radial and angular compensation performance.


Technical Specification of Wheel Sleeve Coupling

In the formula, Tc—calculated torque, Nmm; D—outer diameter of sleeve, mm; d—diameter of shaft, mm, when using spline connection, d takes the average diameter of spline; []——sleeve The allowable shear stress of the cylinder, N/mm2, for the No. 45 steel sleeve, []=35~40N/mm2 is desirable. Check the shear strength of the conical pin connection:


In the formula, d1——the diameter of the conical pin, mm; []——the allowable shear stress of the conical pin, N/mm2, []=0.25 is desirable, which means that the yield of the pin material is excellent.

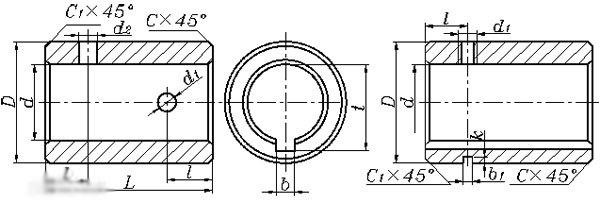

Wheel Sleeve Coupling


Specification

d (H7)

D

L

d1

d2

l

k

b1

b (c10)

t

C

C1

Weight m/kg

Screw

Taper pin

Pin circle

Basic size

Deviation

GT1

18

32

50

M6

4

12

2

1

6

20.8

±0.1

1

2

0.17

M6×12

4×32

27

GT2

20

35

50

12

22.8

1.5

0.252

4×35

30

GT3

22

38

60

15

24.8

0.274

4×38

32

GT4

25

42

75

M8

5

18

2.5

1.2

8

28.3

±0.2

0.48

M8×12

5×40

35

GT5

28

45

80

20

31.3

0.611

5×45

38

GT6

30

48

90

6

22

33.3

0.77

6×45

41

GT7

32

52

95

24

10

35.3

5

0.985

6×50

41

GT8

35

56

105

M10

26

3

1.6

38.3

2.5

1.23

M10×16

6×55

47

GT9

38

62

115

8

28

41.3

1.6

8×60

54

GT10

40

62

120

30

12

43.3

1.63

8×60

54

GT11

42

70

120

30

45.3

1.765

8×70

62

GT12

45

70

130

10

32

14

48.8

2.22

10×70

62

GT13

48

70

140

35

51.8

2.25

10×70

62

GT14

50

80

150

40

53.8

3.62

M10×18

10×80

71

GT15

55

90

165

40

16

59.3

2.5

3.145

10×90

71

GT16

60

90

180

12

45

18

64.4

3

4.96

12×90

81

GT17

65

100

200

50

69.4

5.88

12×100

91

GT18

70

100

220

55

20

74.9

6.85

M12×22

12×100

91

GT19

75

110

220

M12

55

3.6

2.2

79.9

8.76

12×110

100

GT20

80

120

240

16

60

22

85.4

12.19

16×120

110

GT21

85

120

270

65

90.4

3

16.64

16×120

110

GT22

90

130

270

65

25

95.4

17.12

16×130

120
