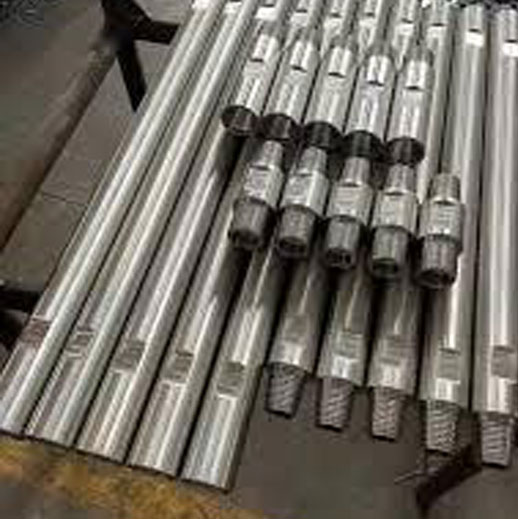

LZ172 Down-hole Motor

Structure and working principle of LZ172 Down-hole Motor

1. Structural composition: It is mainly composed of bypass valve, motor, universal shaft and transmission shaft. The bypass valve allows drilling fluid to pass during the drilling process to avoid excessive pressure in the drill bit; the motor is the core component of the Down-hole Motor, which is composed of a stator and a rotor. The rubber lining of the stator and the rotor form a spiral sealed chamber; the universal shaft transmits the torque and rotational motion of the motor to the transmission shaft; the transmission shaft transmits the power to the drill bit, driving the drill bit to rotate and break the rock.

2. Working principle: With mud as the power, when high-pressure mud is pumped into the screw drill bit from the drill pipe, a pressure difference is formed between the stator and the rotor of the motor, which drives the rotor to rotate, and then drives the drill bit to rotate through the universal shaft and the transmission shaft to realize the drilling operation.

Advantages of LZ172 Down-hole Motor

1. Efficient rock breaking: It can provide stable torque and speed, so that the drill bit can efficiently break the rock, improve drilling efficiency, and shorten the drilling cycle.

2. Precise direction control: With the measurement while drilling instrument, the borehole trajectory can be accurately controlled to meet the drilling requirements under various complex geological conditions.

3. Adaptability to complex formations: It has good adaptability to complex formations such as hard rock, high-siliceous formations, shale gas formations, etc., and can effectively reduce the incidence of accidents such as stuck drills.

4. Low costs: It reduces the number of trips and drills, reduces the wear and energy consumption of drilling equipment, and thus reduces drilling costs.

Technical parameters of LZ172 Down-hole Motor
