  • TLL Type Wheel Sleeve Coupling

TLL Type Wheel Sleeve Coupling

Because the thickness of the elastic sleeve is thin, the volume is small, and the elastic deformation is limited, although the elastic sleeve pin coupling can compensate the axial displacement and elasticity, the allowable compensation amount for the axial displacement is small and the elasticity is weak. The elastic sleeve pin coupling relies on the locking force of the pin group to generate friction torque on the contact surface, and compresses the rubber elastic sleeve to transmit the torque.

LTZ (formerly TLL type) pin coupling with elastic sleeve with brake wheel is suitable for small and medium power shaft transmissions with good rigidity of the installation base, high centering accuracy, small impact load, and low requirements for vibration reduction.

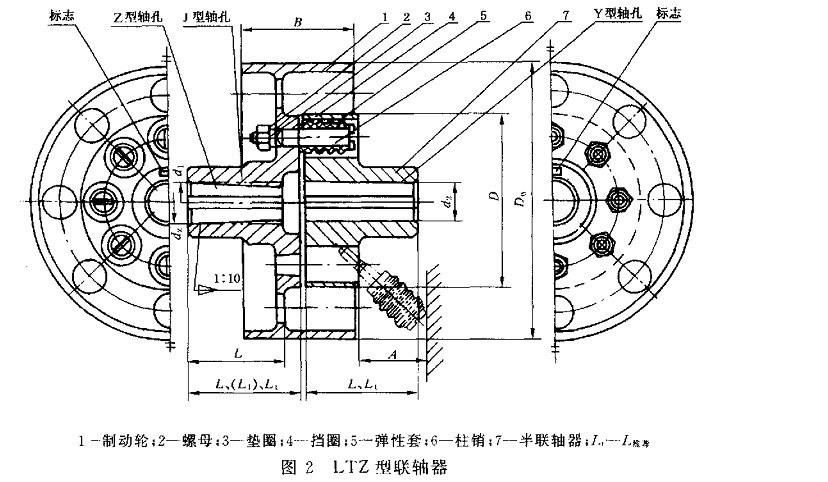

Basic Performance Parameters and Main Dimensions of Ltz (formerly Tll Type) Elastic Sleeve Pin Coupling with Brake Wheel


TLL Type Wheel Sleeve Coupling


Basic parameters and main dimensions of LTZ (formerly TLL) type elastic sleeve pin coupling with brake wheel (GB/T 4323-2002) (unit: mm)

Specification

Nominal torque

Tn(N.m)

Allowable speed


[n](r/min)

Shaft hole diameter

d1 d2 dz

shaft hole length

D0

D

B

S

A

Moment of inertia

Kg.m2

Weight

Kg

Y Model

J、J1、Z Model

L

L1

L

LTZ5

125

3800

25 28

62

44

62

200

130

85

5

45

0.042

13.38

30 32

82

60

82

35

LTZ6

250

3000

32 35

250

160

105

5

0.105

21.25

38

40 42

112

84

112

LTZ7

500

2400

40 42

315

190

132

6

0.252

35

45 48

LTZ8

710

2400

45 48

224

6

65

0.347

45.14

50 55

56

60 63

142

107

142

LTZ9

1000

2400

50 55

112

84


315

250

168

6

65

0.407

58.67

56


60 63

142

107

142

65 70

LTZ10

2000

1900

63 65

400

315

8

80

1.305

100.3

70 71

75

80 85

172

132

172

90 95

LTZ11

4000

1500

80 85

500

400

210

10

100

4.33

198.73

90 95

100 110

212

167

212

LTZ12

8000

1200

100 110

120 125

630

475

265

12

130

12.49

370.6

130

252

202

252

LTZ13

16000

1000

120 125

212

167

212

710

600

298

14

180

30.48

641.13

130 140

252

202

252

150

160 170

302

242

302
