  • Clamping Rigid Couplings

Clamping Rigid Couplings

The clamping rigid coupling uses two axially split shells, clamped with bolts to realize the two-axis connection, and transmits torque by the friction between the two halves of the coupling surface, and uses a flat key as an auxiliary connect.


Structure of Clamping Rigid Couplings

When the clamping rigid coupling is assembled and disassembled, the shaft does not need to move axially, so it is very convenient to assemble and disassemble. The disadvantage of the clamp coupling is that the centering accuracy of the two shafts is low, the structure and shape are more complicated, and the manufacturing and balance accuracy are low. Only suitable for low-speed and stable load occasions, usually the linear velocity of the outer edge is not greater than 5m/s, when the linear velocity exceeds 5m/s, a balance check is required.


In order to balance the situation, the bolts should be installed in positive and negative phases. Clamp couplings do not have axial, radial and angular compensation performance.


The characteristics of the vertical clamshell coupling are similar to those of the clamshell coupling. It is simple in structure and convenient to assemble and disassemble. Connection to vertical shafts such as agitators.

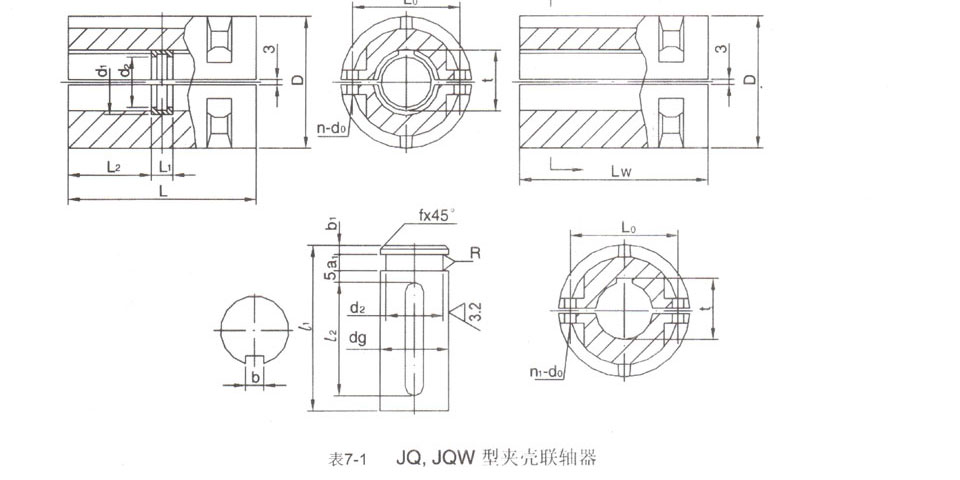

Structure of Clamping Rigid Couplings
