Multi-String Cutter

Multi-String Cutter

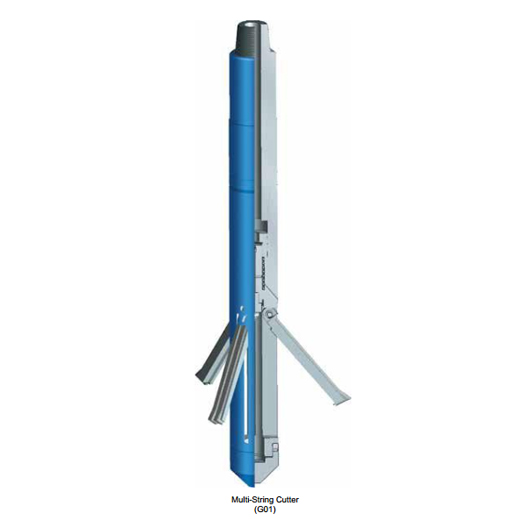

Multi-string Cutter is built to withstand extreme shock encountered while cutting multiple strings of un-centralized conductor pipes. The unique construction of this tool enables the rugged cutter arms to expand outward up to 5 times the diameter of the tool body. The cutter can achieve maximum stability under all types of adverse cutting conditions, including hard spots, eccentricity, interrupted cuts, etc. For example, a 13 3/8” casing cutter, the diameter is only 11 3/4”. However it can handle and cut a wide range of pipes with varying weights up to a 60” diameter.


Technical Specification of Multi-String Cutter:


O.D (mm)ConnectionCasing O.D (in)Product Code
Min.Max.
1022 7/8REG59 5/8G0112700
1112 7/8REG5 1/29 5/8G0114000
133NC386 5/816G0116800
146NC38716G0117800
2036 5/8REG9 5/830G0124500
2106 5/8REG9 5/830G0124510
2386 5/8REG10 3/436G0127300
2986 5/8REG10 3/860G0134000
3686 5/8REG1660G0140600
