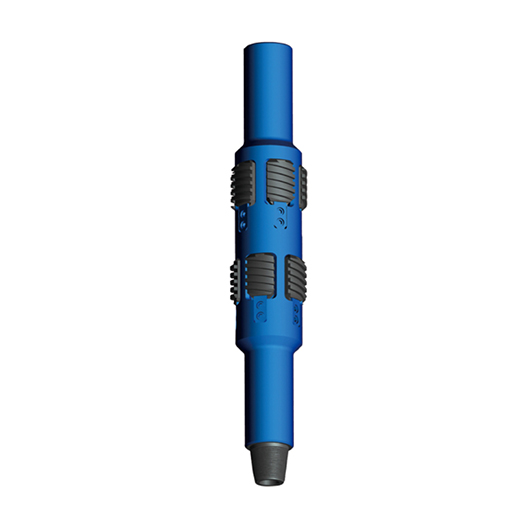

GX type casing scraper is with a spring and rotating design, which can removes rust, scale, cement, mud, bullets, paraffin, perforation burrs and other obstructions or foreign material from the inside walls of casing. The advantages is the big cleaning range and highly effective.
| Specifications • Casing Scraper | ||||||
| Model | Applicable casing size (lb/ft) | ODof body (mm) | Max. OD of cutter stretch out-Min. OO of cutter stretch out (mm) | ID (mm) | Connection | Product Code |
| GX102 | 4 ”(9.26~13.2) | 80 | 92~81.4 | 16 | 2 3/8REG | X01-14010 |
| GX114 | 4 1/2"(9.5~15.1) | 90.5 | 106~92 | 20 | 23/8REG | X01-01010 |
| GX114A | 4 1/2"(13.5-18.8) | 89 | 102~89 | 20 | 2 3/8REG | X01-01030 |
| GX127 | 5"(11.5~18) | 100 | 118~102 | 20 | 2 3/8REG | X01-02010 |
| GX127A | 5"(11.5~24.1) | 92 | 118~96.3 | 18 | 2 3/8REG | X01-02030 |
| GX140 | 5 1/2"(14~23) | 110 | 130~114 | 24 | 2 7/8REG | X01-03010 |
| GX140A | 5 1/2"(17~26.8) | 106 | 127-107.7 | 24 | 2 7/8REG | X01-03030 |
| GX146 | 5 3/4"(14-25.2) | 110 | 138-118 | 24 | 2 7/8REG | X01-04010 |
| GX168 | 6 5/8"(17-34| | 130 | 158-137 | 24 | 3 1/2REG | X01-05010 |
| GX178 | 7"(17~38) | 136 | 168~146 | 30 | 3 1/2REG | X01-06010 |
| GX178B | 7"(13-40) | 136 | 170.8~143.4 | 30 | 3 1/2REG | X01-06030 |
| GX194A | 7 5/8''(24~45.3) | 136 | 182~159 | 30 | 3 1/2REG | X01-07010 |
| GX219 | 8 5/8”(24~52) | 175 | 208~183 | 30 | 4 1/2REG | X01-08010 |
| GX245 | 9 5/8"(32.3~61.1) | 200 | 232~207 | 57 | 4 1/2REG | X01-09010 |
| GX273 | 10 3/4"32.75~71.1) | 228 | 262~235 | 57 | 6 5/8REG | X01-10010 |
| GX298 | 11 3/4" (38-87.2) | 250 | 287~255 | 71 | 6 5/8REG | X01-15010 |
| GX340 | 13 3/8"(4矿88.2) | 286 | 326-301 | 71 | 6 5/8REG | X01-11010 |
| GX473 | 18 5/8''(73.09~122) | 420 | 460~432 | 76 | 75/8REG | X01-12010 |
