  • Ideco Modules

Ideco Modules

Ideco modules are workhorses of mud pump systems, but extreme working environments make them especially vulnerable to stress, wear and damage. In choosing durable fluid end parts that resist cracking and corrosion, you’re making a wise long-term investment for your operations.

Forum offers a full line of high-quality fluid end modules that are entirely manufactured in the United States. Designed for the challenges of higher-pressure drilling, they are crafted with industry-leading materials and technologies to resist cracking and reduce stress concentrations for significantly longer life. Complementary features include our industry-leading P-Quip liner retention and rod systems.


Technical Specification of Ideco Modules:

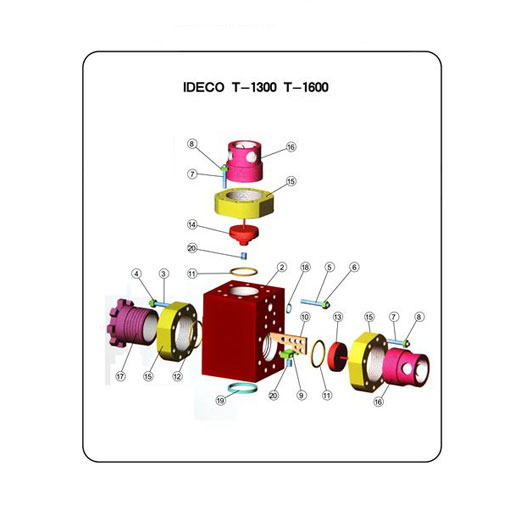

T1300/1600


ITEM #OEM PART #DESCRIPTIONQTY


FLUID END MODULE COMPLETE ASSEMBLY  (INCLUDES ITEMS 1-20)3
1551-122-01MODULE, FLUID END STUDDED (INCLUDES ITEMS  12,3,4,5,6,7,& 20)3
551-158FLUID END MODULE ONLY3

STUD SET
2551-110-01STUD, POWER FRAME24
3IN415NUT,POWER FRAME STUD24
4551-110-02STUD, DISCHARGE MANIFOLD12
5IN415NUT, DISCHARGE MANIFOLD STUD12
6551-110-03STUD, THREADED RING48
7IN415NUT, THREADED RING STUD48
8551-105-07ASSEMBLY, LOWER VALVE GUIDE (INCLUDES # 19 VALVE GUIDE BUSHING)3
9551-105-08RETAINER, LOWER VALVE GUIDE3
*10BTM16696308GASKET, VALVE COVER - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS)9
11551-122-02PLUG, CYLINDER HEAD3
12551-122-02COVER, VALVE3
13551-105-03RING, THREADED9
14551-105-04CAP, THREADED6
15551-105-05NUT, LINER ADAPTER3
16IO548GASKET, DISCHARGE MANIFOLD3
17IO507GASKET, SUCTION MANIFOLD3
18551-105-06GUIDE, UPPER VALVE (INCLUDES # 19 VALVE GUIDE BUSHING)3
1999609339BUSHING, VALVE GUIDE6
20
CAPSCREW, SUCTION MANIFOLD (NOT SHOWN IN DRAWING)24
