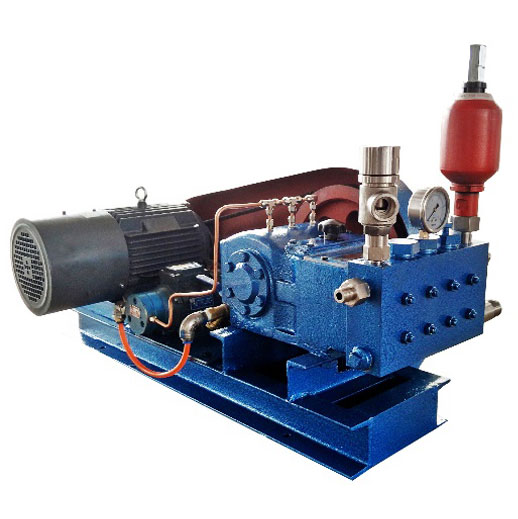

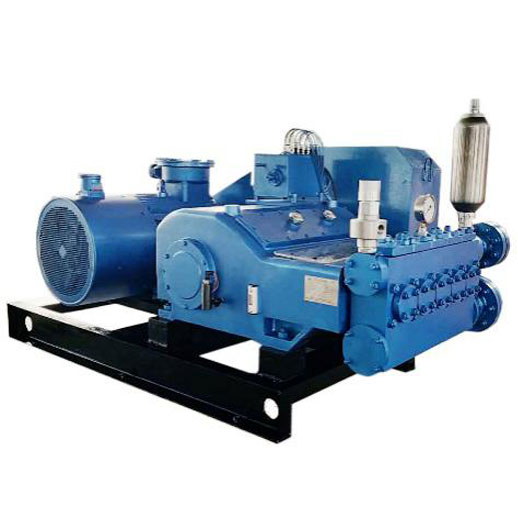

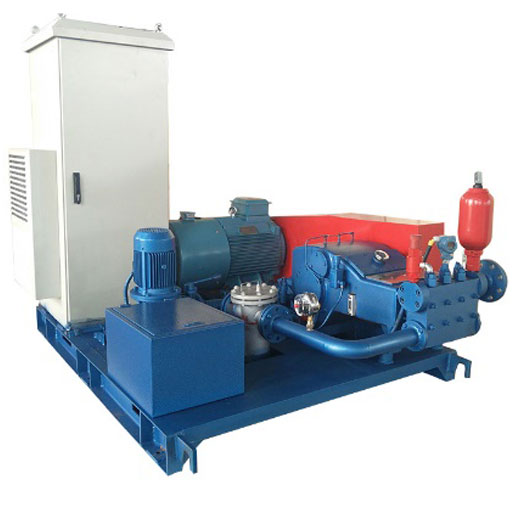

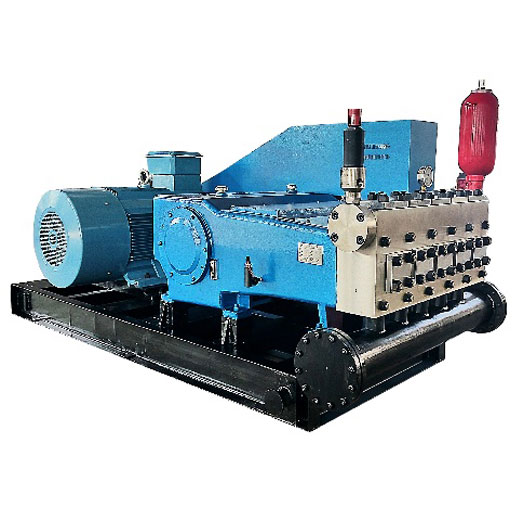

T4(3W20)Triplex Plunger Pump

The plunger pump is an important device for the hydraulic system. It relies on the plunger to reciprocate in the cylinder to change the volume of the sealing working chamber to achieve oil absorption and oil pressure. The plunger pump has the advantages of high rated pressure, compact structure, high efficiency and convenient flow adjustment.


Piston pumps are widely used in applications where high pressures, high flow rates, and flow rates need to be adjusted, such as hydraulic presses, construction machinery, and ships.


The plunger pump is generally divided into a single plunger pump, a horizontal plunger pump, an axial piston pump and a radial piston pump.

Technical Specifications of T4(3W20)Triplex Plunger Pump:

Specifications


English Units

Metric Units


Continuous

Intermittent

Stroke Length


20 mm

Rated bhp

4 HP

5.6 HP

Rated Rod Load

1323 lb

600 Kg

Maximum Speed

450 rpm

600 rpm

Pump Weight

135 lb

61 Kg

Minimum Speed

100 rpm

75 rpm

Oil Capacity

0.32 gal

1.2 L

Max. plunger size x stroke length.

30x20 mm

Max. Fluid Temp

248 °F

120 °C

Crankshaft extension Dia.x length

28x42 mm

Mechanical Efficiency


90%

Keyway (width x depthxlength)

8x4x38 mm


Performance Ratings of T4(3W20)Triplex Plunger Pump:

(Volumes indicated are displacement of incompressible fluid)

plunger Dia.

L/RPM

Gal/

RPM

Max.Press.

pump speed=90RPM

pump speed=200RPM

pump speed=300RPM

pump speed=450RPM

pump speed=500RPM

pump speed=600RPM

mm

in

Mpa

Psi

LPM

GPM

M3/h

LPM

GPM

M3/h

LPM

GPM

M3/h

LPM

GPM

M3/h

LPM

GPM

M3/h

LPM

GPM

M3/h

11

0.43

0.006

0.002

63.0

9135

0.5

0.1

0.0

1.1

0.3

0.1

1.7

0.5

0.1

2.6

0.7

0.2

2.8

0.8

0.2

3.4

0.9

0.2

12

0.47

0.007

0.002

50.0

7250

0.6

0.2

0.0

1.4

0.4

0.1

2.0

0.5

0.1

3.1

0.8

0.2

3.4

0.9

0.2

4.1

1.1

0.2

13

0.51

0.008

0.002

40.0

5800

0.7

0.2

0.0

1.6

0.4

0.1

2.4

0.6

0.1

3.6

0.9

0.2

4.0

1.1

0.2

4.8

1.3

0.3

15

0.59

0.011

0.003

32.0

4640

1.0

0.3

0.1

2.1

0.6

0.1

3.2

0.8

0.2

4.8

1.3

0.3

5.3

1.4

0.3

6.4

1.7

0.4

17

0.67

0.014

0.004

25.0

3625

1.2

0.3

0.1

2.7

0.7

0.2

4.1

1.1

0.2

6.1

1.6

0.4

6.8

1.8

0.4

8.2

2.2

0.5

19

0.75

0.017

0.004

20.0

2900

1.5

0.4

0.1

3.4

0.9

0.2

5.1

1.3

0.3

7.7

2.0

0.5

8.5

2.2

0.5

10.2

2.7

0.6

21

0.83

0.021

0.005

16.0

2320

1.9

0.5

0.1

4.2

1.1

0.2

6.2

1.6

0.4

9.3

2.5

0.6

10.4

2.7

0.6

12.5

3.3

0.7

24

0.94

0.027

0.007

12.5

1813

2.4

0.6

0.1

5.4

1.4

0.3

8.1

2.2

0.5

12.2

3.2

0.7

13.6

3.6

0.8

16.3

4.3

1.0

27

1.06

0.034

0.009

10.0

1450

3.1

0.8

0.2

6.9

1.8

0.4

10.3

2.7

0.6

15.5

4.1

0.9

17.2

4.5

1.0

20.6

5.4

1.2

30

1.18

0.042

0.011

8.0

1160

3.8

1.0

0.2

8.5

2.2

0.5

12.7

3.4

0.8

19.1

5.0

1.1

21.2

5.6

1.3

25.4

6.7

1.5

Brake Horsepower Required

0.8

1.8

2.7

4(Continuous work)

4.5

5.6


The Saigao Model T4 is a single acting triplex plunger pump rated at 4 HP in continuous duty services and up to 5.6 HP in intermittent duty. This versatile pump is offered with a variety of material and design options that make it ideal for general industrial, reverse osmosis, and typical applications involved in the production of oil and natural gas.


Flows are based on 100% volumetric efficiency. Brake Horsepower /Kilowatts Required is based on 90% Mechanical Efficiency.Consult Saigao for continuous service speeds in excess of 450 RPM.


Not all plunger sizes are shown, Additional plunger sizes are available. Please contact Saigao for more details. Standard configuration is a single extended crank, double extending crankshaft please contact Saigao.


Discharge and Suction Connection mode and size please contact Saigao.
