  • National Modules

National Modules

Saigao modules and fluid end components offered by Acumen International are of high-strength, premium alloy steel, heat treated for a long working life and machined to precise tolerances. Each product is rated for all drilling operations up to 7500 PSI.

Manufacturing utilizes the latest technologies to produce accurate and uniform parts. All products offered are either OEM or completely interchangeable. All fluid end accessories are available for most triplex and duplex mud pumps.


Associated Items of Gardner Denver Modules:

  • Suction and Discharge modules

  • Valve and Cylinder head plugs

  • Valve and Cylinder head thread rings

  • Valve and Cylinder head locks

  • Valve guides

  • Studs and nuts

  • Strainers

  • Rods: Piston, Extension, Sub

  • Wear Plates

  • Rod Clamps

  • Gaskets

Technical Specification of Gardner Denver Modules:

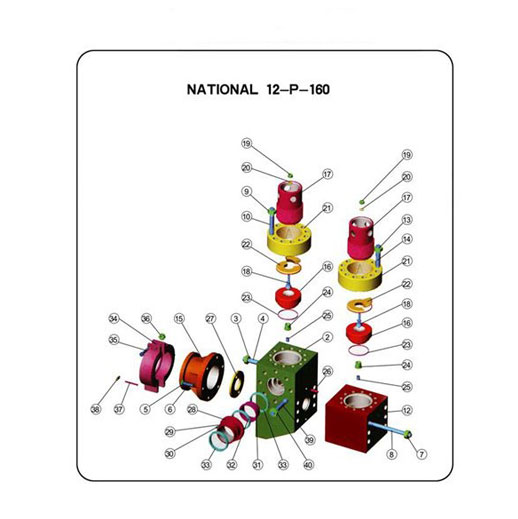

12-P-160
ITEM #OEM PART #DESCRIPTIONQTY


FLUID END MODULE COMPLETE ASSEMBLY (INCLUDES ITEMS: 1-6, 9-22, 29-35)
11292240MODULE, STUDDED FLUID END DISCHARGE ( INCLUDES ITEMS 1,3-6, 9-11, 31, & 31A)3
1292241DISCHARGE MODULE ONLY3

STUD SETS
21292243MODULE, STUDDED FLUID END SUCTION (INCLUDES ITEMS 2,3,4 & 35)3
1292244SUCTION MODULE ONLY3

STUD SETS
32408027STUD, THREADED RING72
46300240NUT, THREADED RING STUD72
52408029STUD, POWER FRAME24
66300220NUT, POWER FRAME STUD24
72408015STUD,TOP TAPER LOCK (FOR BLIND RING AND WELD NECK FLANGES)16
86300240NUT, STUD (BLIND RING AND WELD NECK FLANGES)16
92408033STUD, DISCHARGE MODULE TO SUCTION MODULE18
106300281NUT, DISCHARGE TO SUCTION MODULE STUD18
116511416PIN, DOWELL6
121292141BUSHING,VALVE GUIDE6
131292140RETAINER, VALVE GUIDE BUSHING6
141540127GASKET, VALVE COVER - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS)6
151290174RETAINER, SEAL6
161290178SCREW, ADJUSTING WEDGE6
17G1292268ASSEMBLY, WEDGE (INCLUDES ITEM #18 WEDGE HNARING)6
181290181HNARING, WEDGE6
191292176RING, THREADED6
201292172CAP, VALVE COVER (THREADED)6
211292171WASHER, WEDGE ADJUSTING SCREW6
226300182NUT, WEDGE ADJUSTING SCREW6
232410031437SEAL,DISCHARGE CONNECTOR & DISCHARGE ADAPTER4
241292253ADAPTER, DISCHARGE CONNECTOR2
252410031433SEAL,DISCHARGE CONNECTOR TO DISCHARGE ADAPTER2
261292252CONNECTOR, DISCHARGE2
272410031437CAPSCREW, DISCHARGE HNAACER FLANGE16
28700030711CAPSCREW, DISCHARGE CONNECTOR (WASHER INCLUDED)16
291292266PLATE, WEAR3
301292165BUSHING, LINER3
312408028STUD, LINER BUSHING18
31A6300180NUT, LINER BUSHING STUD18
321292166ASSEMBLY, LINER CLAMP (INCLUDES ITEMS 32A, 32B, 32C,32D,32E,& 32F)3
32A700049110CAPSCREW, LINER CLAMP6
32B****** (OPTIONAL) LOCK WASHER 5/8"6
32C6309140NUT, LINER CAPSCREW6
32D1292169PIN, CONNECTOR6
32EG1292168PCONNECTOR, LINER CLAMP6
32F6571620PIN, HNARING4
331292257SEAL, MODULE & WEARPLATE - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS)6
341540851SEAL, SUCTION MANIFOLD3
35700048511CAPSCREW, SUCTION MANIFOLD34
