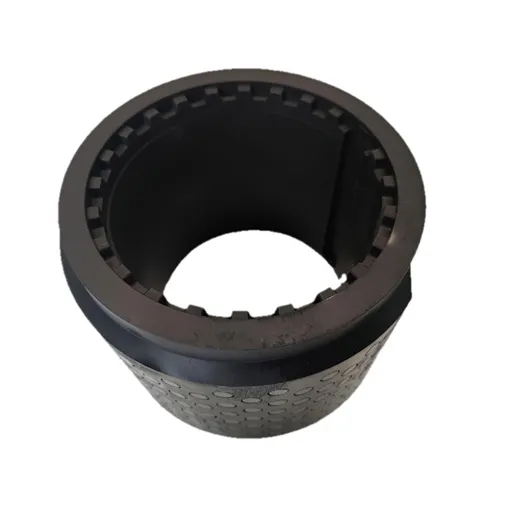

Adjusting Ring

I. Main Functions and Roles of Adjusting Ring

1. Core function: Precisely set the preload of the bearing.

The thrust bearing assembly of the downhole motor needs to apply an accurate axial preload during installation. This preload force can: eliminate the clearance inside the bearing, preventing excessive impact on the bearing at the initial stage of force application. Enhance the rigidity and rotational accuracy of bearings. Ensure that the load is evenly distributed on all bearing raceways. The adjusting ring is a key component used to achieve and maintain this precise preload force. By using adjusting rings of different precise lengths, it can be ensured that the bearing group is in the best preload state when the entire transmission shaft assembly is compressed.

2. Key function: Distributing axial loads.

The adjusting ring, through its precise length, ensures that the axial load can be evenly transmitted and distributed to each pair of thrust bearings as per the design intent, preventing any pair of bearings from being prematurely damaged due to excessive force.

3. Provide installation benchmarks.

When assembling the drive shaft assembly, the adjusting ring serves as a rigid length standard, providing a reference for technicians to press and fix the entire bearing group.

II. Characteristics and Requirements of The Adjusting Ring

1. Extremely high dimensional accuracy: Its length tolerance is usually required to be at the micrometer level (±0.01mm or even stricter). A slight deviation in length can directly lead to excessive or insufficient preload of the bearing.

2. Extremely high rigidity and strength: It must be made of high-strength alloy steel (such as high-performance bearing steel) to withstand huge axial pressure without compressive deformation.

3. Excellent parallelism and flatness: The two end faces must be highly parallel and smooth to ensure uniform pressure transmission and prevent eccentric loading.

4. Excellent heat treatment performance: Appropriate heat treatment (such as quenching and tempering) is required to achieve high hardness, high wear resistance and sufficient toughness.

The adjusting ring is a small but precise key accessory inside the transmission shaft assembly of the downhole motor. Although it does not directly contact the drilling fluid or transmit torque, it plays the role of a "bearing load manager" through its precise length. When maintaining and servicing downhole motors, a high degree of attention must be paid to the selection and installation of the entire set.
