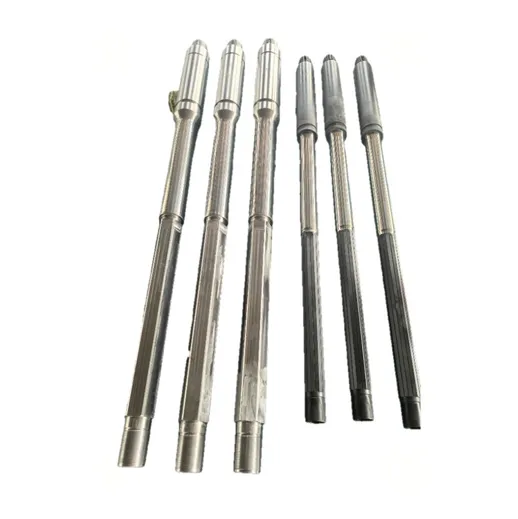

Drive Mandrel

What is a Slammer?

First, we need to understand what a slammer is.

A slammer is a hydraulic mechanical tool installed in the drill string. Its main function is to generate a momentary, high-intensity, upward impact force (upward strike) or downward impact force (downward strike). This impact force acts like a "hammer," used to release drill strings stuck in the formation.

II. The Role and Position of the Drive Mandrel in the Slammer

The drive mandrel is the "heart" and "power arm" of the slammer. Its main functions are:

• Transmitting force and torque: During normal drilling, it transmits the torque and drilling pressure from the surface to the drill bit, just like a regular drill pipe.

• Energy Storage: When impact is needed, by lifting or lowering the drill string, the drive mandrel is stretched or compressed under the action of the internal mechanism of the impactor, like a stretched or compressed spring, storing a huge amount of elastic potential energy.

• Energy Release: When the stored energy reaches a critical point, the drive mandrel triggers the release mechanism inside the impactor, causing it to slide at high speed instantaneously, converting the stored elastic potential energy into huge impact kinetic energy, which is then transferred to the stuck drill string.

In short, the drive mandrel is a key actuator for energy conversion and release.

III. Working Principle of the Drive Mandrel (Taking the most common hydraulic impactor as an example)

• Seating and Stretching: When the drill string is stuck, the drill bit cannot move. At this time, forcefully lifting the drill string at the wellhead stretches the entire drill string. However, due to the hydraulic delay mechanism inside the impactor, the drive mandrel does not move immediately. Instead, the impactor body and the drill string above it are stretched, storing a huge amount of elastic potential energy.

• Energy Storage: The stretched drive mandrel itself also bears a huge tensile force and is in a state of high stress.

• Triggering and Release: When the lifting force reaches a predetermined value, or after a brief hydraulic delay, the release mechanism inside the shock absorber is triggered. Under the pulling force, the drive mandrel slides freely upwards at extremely high speed for a distance.

• Impact Generation: The tip of the drive mandrel (impact hammer) violently strikes the anvil on the shock absorber body, releasing all stored energy instantaneously (milliseconds) and generating an upward, violent impact force. This impact force is transmitted through the drill string to the stuck point, repeatedly impacting and thus releasing the stuck object.

IV. Key Design and Manufacturing Requirements of the drive mandrel

Due to its operation under extreme conditions, the design and manufacturing requirements of the drive mandrel are extremely stringent:

Extremely High Mechanical Properties:

Strength: Must be able to withstand enormous tensile and compressive loads without plastic deformation or fracture.

Toughness: Must not undergo brittle fracture under impact; good impact toughness is required.

Fatigue Strength: Must withstand cyclic alternating stresses during drilling; good fatigue resistance is required.

Excellent Surface Treatment and Wear Resistance:

The drive mandrel surface typically undergoes special processes such as nitriding, hard chrome plating, or tungsten carbide spraying. This significantly improves its surface hardness, wear resistance, and corrosion resistance to withstand friction with seals and corrosion from drilling fluids during high-pressure, high-speed sliding.

Precise Geometric Tolerances:

The drive mandrel's outer diameter, straightness, and roundness have extremely stringent tolerance requirements. This ensures a perfect fit with the internal sealing components of the shock absorber (such as piston rings), allowing for free sliding while effectively sealing high-pressure hydraulic oil.

Special Material Selection:

High-strength alloy steels, such as AISI 4140H, 4340, or higher-grade aerospace-grade alloy steels, are typically used. These materials undergo rigorous heat treatment (quenching and tempering) to achieve an ideal combination of high core toughness and high surface hardness.

V. Common Types

The type of drive mandrel is directly related to the type of shock absorber it belongs to:

• Hydraulic Shock Absorber drive mandrel: The most common, as mentioned above, it operates through a hydraulic delay and release mechanism.

• Mechanical Shock Absorber drive mandrel: Relatively simple in structure, it stores and releases energy through a mechanical slip mechanism.

• Drilling Shock Absorber drive mandrel: Operates continuously during drilling to prevent stuck pipe; its drive mandrel needs to withstand more complex cyclic loads and longer periods of wear.

VI. Failure Modes and Maintenance

Common failure modes of drive mandrels include:

• Fatigue Fracture: Cracks develop at stress concentration points (such as at the thread root or cross-sectional changes) due to cyclic loads, eventually leading to fracture.

• Surface Wear/Scratching: The hardened surface layer is worn through or scratched, leading to seal failure and jamming.

• Corrosion: Stress corrosion cracking may occur when operating in drilling fluids containing corrosive media such as hydrogen sulfide.

• Overload Deformation or Fracture: Exceeding its yield strength or tensile strength.

Therefore, after each tripping operation, the drive mandrel requires rigorous inspection, including:

• Visual inspection for cracks, scratches, and corrosion.

• Measurement of critical dimensions to ensure they are within tolerance limits.

• Inspection for internal and surface defects using magnetic particle or ultrasonic testing.

In summary, although the slammer drive mandrel is a relatively simple cylindrical component, it represents the core of the slammer's technological sophistication. Its materials, heat treatment processes, machining precision, and surface finish directly determine the slammer's performance, reliability, and service life. A high-quality, high-performance drive mandrel is a key factor in successfully freeing stuck parts, ensuring downhole safety, and saving costs during drilling operations.
