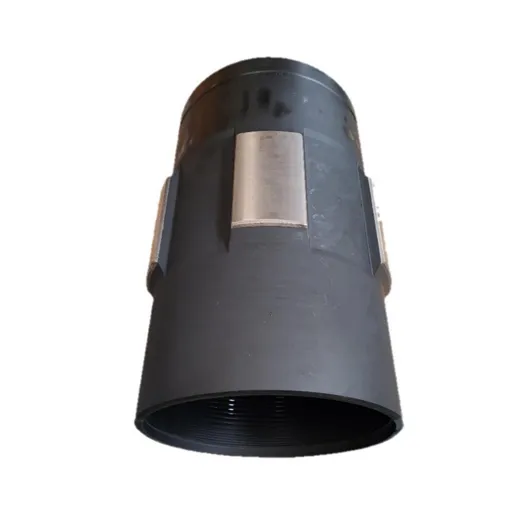

Stabilizer Sleeve (Laser Cladding of Tungsten Carbide)

I. Process Principle of Stabilizer Sleeve (Laser Cladding of Tungsten Carbide)

Laser cladding is an advanced surface modification technology. In this process, tungsten carbide powder is used as the cladding material. Through the irradiation of a high-energy laser beam, the tungsten carbide powder and the surface of the supporting sleeve substrate melt simultaneously, and then rapidly solidify to form a metallurgically bonded strengthened coating. This bonding method is different from ordinary spraying or electroplating. The coating has a high bonding strength with the substrate and is not easy to fall off, which can adapt to the complex force environment during the drilling process.

II. Core Performance Advantages of Stabilizer Sleeve (Laser Cladding of Tungsten Carbide)

1. Ultra-high wear resistance: Tungsten carbide itself is a hard alloy material with extremely high hardness (reaching over HV1000). The coating formed after cladding can significantly enhance the wear resistance of the surface of the stabilizer sleeve, effectively resisting the erosion of solid particles in the drilling fluid during the drilling process and the friction with the wellbore and other components of the drilling tool. Compared with traditional alloy steel or ordinary coated stabilizer sleeves, the service life can be increased by 3 to 5 times.

2. Excellent corrosion resistance: Drilling fluids often contain corrosive media such as acids, alkalis, and salts. The tungsten carbide cladding layer has a dense structure, which can isolate the substrate from the corrosive media. Meanwhile, the laser cladding process can reduce the porosity of the coating, preventing the corrosive media from seeping through the pores and causing the substrate to rust, thereby enhancing the corrosion resistance of the accessories in complex drilling fluid environments.

3. Impact resistance and fatigue resistance: As the coating and the substrate are metallurgically bonded, during the drilling process, the radial impact and alternating loads that the stabilizer sleeve bears will not cause the coating to crack or peel off, maintaining long-term stable centering performance and reducing drilling failures caused by accessory failure.

III. Applicable Scenarios of Stabilizer Sleeve (Laser Cladding of Tungsten Carbide)

This type of stabilizer sleeve is particularly suitable for drilling operations in deep Wells, ultra-deep Wells, highly abrasive formations (such as sandstone and gravel layers), and corrosive drilling fluid systems. It can operate stably under harsh conditions of high temperature (up to over 200℃), high pressure, and high wear, reducing the frequency of shutdown and component replacement in downhole operations and enhancing overall drilling efficiency.
