Name: CORE DRILLING MACHINE
Brand: SHANDONG SAIGAO GROUP CORPORATION

Applications:

XY series drilling machine is suitable for engineering geological survey of railways, utilities, transportation, bridges, dam foundation and other buildings; Geological core drilling, physical investigation; small grouting hole drilling, blasting holes; small wells drilling.

Specifications

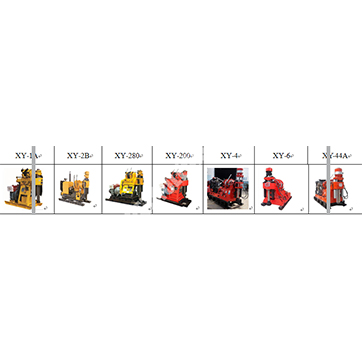

Type	XY-1A	XY-2B	XY-280	XY-200	XY-4	XY-6	XY-44A
Drilling capacity
Drilling capacity
Max Core drilling(m)	100,180m	φ76 mm 300m	φ59 mm 280m	φ71mm 220m	φ42mm 1000m	1200-1800m	750-1400m
Water Well Drilling(m)	120m	170m	150m	100m	280m	250m	300m
Drilling angle(°)	90-75°	70-90 °	0-90°	0～360°	0～360°	0～360°	0～360°
Engine
Engine
Diesel engine	S1100	N485Q	L28	Changchai	4100	4135AG	YC4108ZD
Power(kW)	12.1KW	24.6KW	20KW	22KW	36.75KW	59KW	42KW
Speed(r/min)	2000 r/min	1800 r/min	2200 r/min	1500r/min	2000r/min	1500r/min	1500r/min
Forward low speed(r/min)					101；187；267r/min		83；152；217；316r/min
Forward high speed(r/min)					311；574；819 r/min		254；468；667；970 r/min
Reversion(r/min)		62,157 r/min	70,155 r/min		110,388r/min	72, 218 r/min	67；206 r/min
Gyrator
Gyrator
Type	Dual cylinder hydraulic feed mechanical rotary
Vertical stroke(mm)	450 mm	550mm	510 mm	600mm	600mm	620mm	600mm
Maximum vertical lifting force(KN)	25KN	46KN	49KN	60KN	80KN	220KN	120KN
Maximum vertical pressure force(KN)	15KN	25KN	29KN	70KN	60KN	150KN	90KN
Hoist
Hoist
Rope diameter(mm)	9.3mm	15mm	12mm	14mm	16mm	10mm	17.5mm
Spool wire rope capacity(m)	35m	50m	50m	45m	52m	40m	110m
Maximum lifting force single rope(KN)	11KN	25KN	20KN	17KN	34KN	13KN	45KN
Dimensions(mm)	1433×697×1274mm	2500x1100x1700mm	2000x980x1500 mm	1433×6971273mm	2640×1100×1750mm	3100×1310×2100mm	3042×1100×1920mm
Weight(KG)	420KG	1550KG	1000KG	720KG	1500KG	3500KG	2300KG
