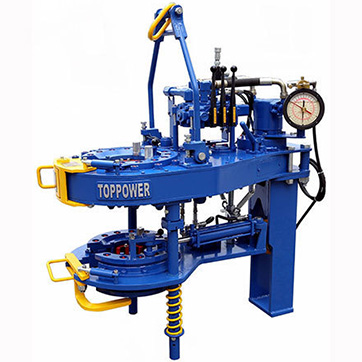

Name: YQ140/25 Hydraulic Power Tong (KT5500)
Brand: SHANDONG SAIGAO GROUP CORPORATION

Technical parameter.

Specification		2 3/8″、2 7/8″、3 ″,3 1/8″、3 3/8″、3 1/2″,4 ″、4 1/8″、4 1/2″、4 3/4″、5 ″、5 1/2″
Torque	Work pressure	6.90 Mpa	10.35 Mpa	13.80 Mpa	15.17 Mpa
	High torque	2.10 kN.m	3.29 kN.m	4.52kN.m	5.00 kN.m
	Low torque	10.37 kN.m	16.47 kN.m	22.57 kN.m	25.00 kN.m
Rotational speed	Fuel supply quantity	37.85 L/min	75.70 L/min	151.42 L/min	189.27 L/min
	High speed	13.4 r/min	26.8 r/min	53.6 r/min	67.1 r/min
	Low speed	2.7 r/min	5.4 r/min	10.7 r/min	13.4 r/min
Torque arm length		950-1400 mm
Overall dimension (LWH)		1270 X 610X 1370mm
Weight		780 Kg
