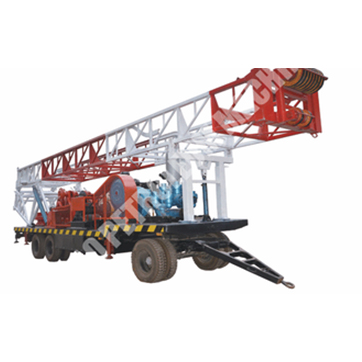

Name: SPT-800 DRILLING RIG
Brand: SHANDONG SAIGAO GROUP CORPORATION

Technical Specifications of SPT-800 Drilling Rig

Drilling Depth(m)	800
Openning Diameter of Rotary Table(mm)	660
RPM of Rotary Table (r/min)	Positive and negative 21, 41, 80, 139
Hoist Capacity of Master Winch(t)	6
Kelly(mm)	10810810500
Hole Drill Pipe(mm)	Φ89*8750
Mast Structured	n
Effective Height (m)	14
Loading Capacity of Power Swivel(t)	50
Loading Capacity of Traveling Block(t)	50
Power(kw)	55
Mud Pump Model	BW850/5
Mud Pump Power(kw)	90
Weight (t)	24
Dimensions( L* W* H) (m)	12.52.53.7(in traveling mode) 102.515.7(in operating mode)
