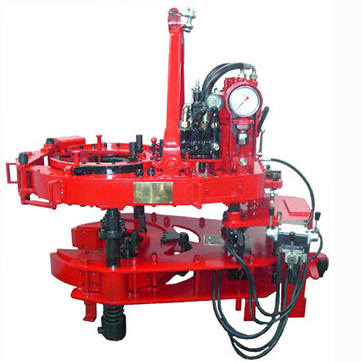

TQ340-35YA Hydraulic Casing Tong

It is driven by hydraulic cylinder to enter and exit the working position, which is fast and convenient.

The open bull gear transmission and multi-roller supporting structure are adopted to greatly improve the strength and rigidity of the casing tongs.

Precision casting is adopted for the swing double jaw jaw, which not only has beautiful appearance, but also has high strength, easy disassembly and assembly, and reasonable cutting ratio design, so as to ensure reliable clamping and easy back slope.

Belt braking mode is adopted, with large braking torque, simple operation and easy maintenance and replacement.

With hydraulic torque indicator and mounting interface of torque gauge. NKY microcomputer torque automatic control recorder can be equipped to realize microcomputer management.

TQ series casing power tong is a kind of hydraulic power equipment used for loading and unloading string threads when installing casing in oilfield oil well production operations. This series of bushings adopts advanced bushing clamping technology, transmission system and safety control system, which can safely and effectively clamp and unload bushings of different specifications within the specified range. The high operation efficiency can greatly reduce the labor intensity of workers, improve the thread connection quality of casing string and reduce the accidents caused by improper casing running operation.

Technical parameter:
