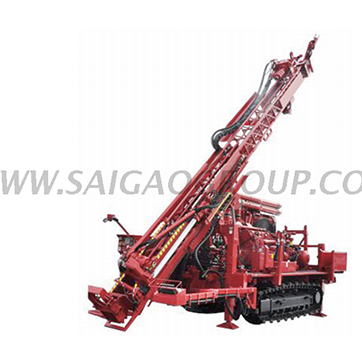

Name: D Series Multi-function Water Well Drilling Rig
Brand: SHANDONG SAIGAO GROUP CORPORATION

Product Description

1. D series multi-function water well drilling rig equipped with all-terrain crawler chassis, meet the discharge standards. It can also match all types of chassis according to customer need.
2. Hydraulic power head(can become warped), multi-speed stepless speed regulation, automatic adjustment of torque to adapt to different formation of construction, energy saving and high efficiency.
3. Hydraulic power head can match reverse circulation device, and meet the needs of the large diameter and broken formation and special construction situation.
4. Hydraulic system with full hydraulic load sensitive control, less heat, more energy saving, the entire operating handle is concentrated on an independent operating table, can reduce the number of labor.
5. Can be equipped with various types of automatic pole changing device, improve the efficiency of the construction, at the same time, reducing the labor intensity of workers.
6. Suitable for drilling process, drilling machine comes standard with clean water pump, foam pump and air interface, users can directly use the drilling mud or optional air compressor for air drilling.
7. Key-module imported international famous brand products, reliable operation, and long life. Such as reducer, motor, add and subtract pressure steel wire rope, etc.

Technical Parameters of D Series Multi-function Water Well Drilling Rig

Model	D400B	D600	D900	D1200
Drilling Capacity
Dia. Drill Pipe	114mm	114mm	114mm	114mm
Drilling Depth	800m	1200m	1800m	2500m
Hydraulic System	Fully open loop system	Fully open loop system	Fully open loop system	Fully open loop system
Rated pressure	30Mpa	30Mpa	30Mpa	30Mpa
Cooling	Air cooling	Air cooling	Air cooling	Air cooling
Engine
Model	Commins 6BTA5.9-C180	Commins QSK-19	Detroit 2000TA	Detroit 2000TA
Type	Turbocharging	Turbocharging	Turbocharging	Turbocharging
Rate Power	132KW	132KW	560KW	560KW
Rated Speed	2200rpm	2200rpm	1800rpm	1800rpm
Power Head
Max. Torque	14000Nm@60rpm 7000Nm@120rpm	14000Nm@60rpm 7000Nm@120rpm	12000Nm@180rpm 2400Nm@80rpm	12000Nm@180rpm 2400Nm@80rpm
Max. Speed	120rpm; 60rpm	120rpm; 60rpm	180rpm; 80rpm	180rpm; 80rpm
Feed Stroke	6450mm	15240mm	15240mm	15240mm
Dia. of Through-hole	76mm	76mm	120mm	120mm
Lifting force /Feeding force	400KN/100KN	600KN/100KN	900KN/150KN	1200KN/150KN
Lifting speed of power head	30m/min	30m/min	35m/min	35m/min
Rate of decline of power head	60 m/min	60 m/min	55 m/min	55 m/min
Main Winch
Lifting force	70KN	70KN	70KN	70KN
Lifting Speed	28m/min（low) 67m/min(high)	28m/min（low) 67m/min(high)	28m/min（low) 67m/min(high)	28m/min（low) 67m/min(high)
Wirerope Diameter	16mm	16mm	16mm	16mm
Rope Capacity	30m	30m	30m	30m
Mast
Height	10m	21m	21m	21m
Drilling Angle	45℃ -90℃	45℃ -90℃	Optional	Optional
Slip Travel	1.2m	1.2m	1.2m	1.2m
Wellhead fork
Application of drill pipe	Equipped with the corresponding pad and fork, hydraulic drive	Optional	Optional	Optional
Driving Capacity
Max.Grade Ability	30°	Optional chassis	Optional chassis	Optional chassis
Max.Travel speed	3km/h	Optional chassis	Optional chassis	Optional chassis
Transportation Clearance
LWH	1005923003300mm	According to different chassis	According to different chassis	According to different chassis
Total Weight of the Machine
Total Weight	16t	33t	43t	54t
