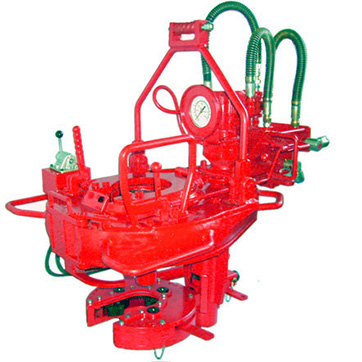

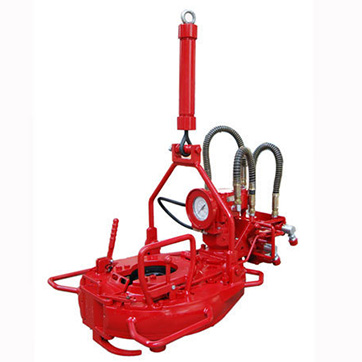

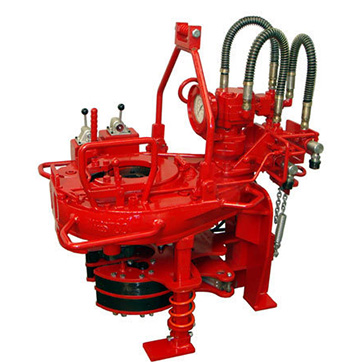

Name: YQ115-9YA Hydraulic Power Tong
Brand: SHANDONG SAIGAO GROUP CORPORATION

Technical parameter.

Type	YQ115-9YA (4500, HSC45)	YQ115-12Y (5500)
Scope of application	￠26.6-52mm ￠60-114mm 1.05” - 2.063” 2 3/8” - 4 1/2”
Rated low torque （13.8 Mpa）	7300 N·m 5400 ft·lbs	9500 N·m 7000 ft·lbs
Maximum low torque （17.2 Mpa）	9000 N·m 6700 ft·lbs	12000 N·m 8750 ft·lbs
Rated high speed （120 L/min）	82 r/min;
Rated low speed （120L/min）	22 r/min;
System rated power requirements	13.8 Mpa 2000psi 120L/min 30gmp
Overall dimensions	790x1090x660mm 31”x42.9”x26”
Weight	285kg 620lbs
