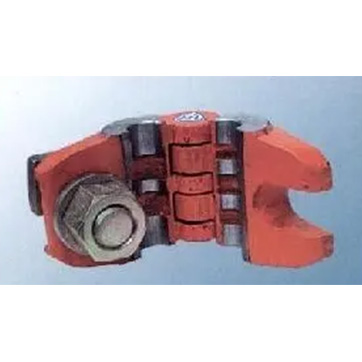

Name: Polish Rod Clamp
Brand: SHANDONG SAIGAO GROUP CORPORATION

Technical Data Sheet

WL16000 type

Specification	Workload	Weight
22mm	78.5kN (8010kgf)	5.6 kg
25mm	100Kn(10200 kgf)	5.5kg
25.4mm(lin)	100kN(10200 kgf)	5.5kg
28mm	118kN(12040kgf)	5.5kg
28.6mm(1 1/8in)	118kN(12040kgf)	5.5kg

WL 18200 TYPE

Specification	Workload	Weight
25mm	118kN(12040kgf)	7.3kg
25.4mm(lin)	118kN(12040kgf)	7.3kg
28mm	157kN(16020kgf)	7.2kg
28.6mm(1 1/8in)	157kN(16020kgf)	7.2kg
31.8mm(1 1/4in)	157kN(16020kgf)	7.1kg
32mm	157kN(16020kgf)	7.1kg

Specification	Workload	Weight
31.8mm(1 1/4in)	178kN(18160kgf)	10.35kg
32mm	178kN(18160kgf)	10.35kg
36mm	178kN(18160kgf)	10.3kg
31.8mm(1 1/2in)	178kN(18160kgf)	10.2kg
42mm	178kN(18160kgf)	10.2kg
