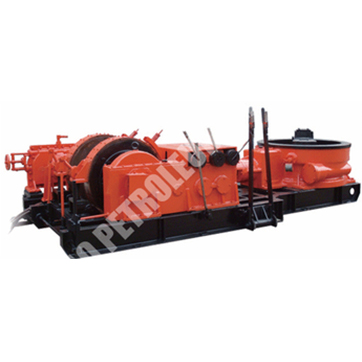

Name: TSJ1500/660 Drilling Rig
Brand: SHANDONG SAIGAO GROUP CORPORATION

Technical Specifications of TSJ1500/660 Drilling Rig

Drilling Depth（m）	Φ73 Drill Pipe	Φ89 Drill Pipe	Φ114 Drill Pipe
	2000	1500	1000
Opening Diameter of Turn-plate(mm)	Φ445/Φ660
RPM of Turn-plate(CW CCW) (r/min)	37 52 84 145
Max Norminal Torque out of Turn-plate (kN.m)	21
Max Thread Tightening Torque of Turn-plate (kN.m)	86
Wire Diameter(mm)	24.5
Hoisting Capacity of Windlass(kN)	90
Lift Speed of the Winch (m/s)	0.84 1.90 3.3
Input Speed of Clutching	730
Diesel Engine	6135AN-3-SM
Power(KW)	110
Rotary Speed(r/min)	1500
Electronic Power Model	Y315S-4
Power(KW)	110
Rotary Speed (r/min)	1480
Travelling System	4*5
Overall Dimensions (mm)	388019651290
Net Weight (kg) (power section no included in)	7553
