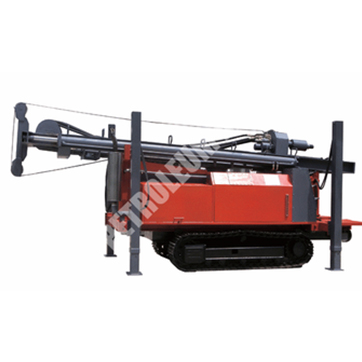

Name: STD-500 Drilling Rig
Brand: SHANDONG SAIGAO GROUP CORPORATION

Specification

Drilling Depth(m)	500	Hoist capacity of winch(T)	1.5
Bore Diameter(mm)	150-400	The leg's length(m)	1.6
Wind Pressure of work(Mpa)	≤5	Feed cylinder stroke(mm)	4250
Air Consumption	32-136	Drilling rate(m/h)	20-50
Drill pipe length(mm)	4000	Moving speed(km/h)	10
Drill pipe diameter(mm)	Φ73/Φ89/Φ 105/Φ114	Climbing slope capacity	≤30
Hoist capacity(T)	20	Drilling pattem	Pneumatic DTH Hammer
Rotary torque(Nm)	4000	Weight(T)	14
Rotary Speed(r/min)	0-60/60-120	Dimensions(m)	1.9x6.4x2.5
