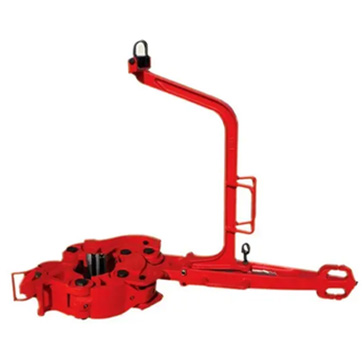

Name: Sdd Type Manual Tong
Brand: SHANDONG SAIGAO GROUP CORPORATION

Technical Data Sheet

No.of latch lug jaws	No.of hinge pin hole	Handle shoulder	Pipe Size		Torque max.(KN.m)
No.of latch lug jaws	No.of hinge pin hole	Handle shoulder	in	mm	Torque max.(KN.m)
1 #	I	1	4-5 1/2	101.6-139.7	135
	I	2	5 1/2 -5 3/4	139.7-146
	II	1	5 1/2 -6 5/8	139.7-168.3
	II	2	6 1/2 -7 1/4	165.1-184.2
	III	1	6 5/8 -7 5/8	168.3-193.7
	III	2	7 3/4 -8 1/2	196.9-215.9
2 #	I	1	1981-2-9	215.9-228.6
	II	2	9 1/2 -10 3/4	241.3-273
	II	2	10 3/4 -12	273-304.8
3 #	I	1	12-12 3/4	304.8-323.8	100
	II	1	13 3/8 -14	339.7-355.6
	II	2	15	381
4 #	II	1	15 3/4	400	135
5 #	II	1	16	406.4	80
