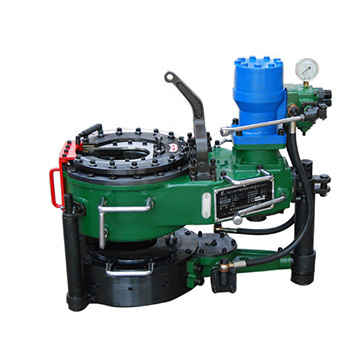

Name: XQ114-6YI Hydraulic Power Tong
Brand: SHANDONG SAIGAO GROUP CORPORATION

XQ series hydraulic power tong has the following features:

Operate the manual reversing valve on the main caliper, and the main caliper and the back caliper work synchronously.

A special two-way sequence control device for tubing tongs can be equipped as required, so as to clamp the tubing with the back tongs before the main tongs, making the tubing loading and unloading safer and more reliable.

The oil pipe is clamped by the two-way climbing clamping mechanism of the roller with internal surface, which is simple in structure and reliable in operation.

The main tong is equipped with automatic opening and closing safety door for safety protection.

With torque control system.

Technical parameter.

Type	XQ114/6YI
Scope of application of the main tong	￠73-114mm 2 7/8” - 4 1/2”
Scope of application of the backup tong	￠89-141.5mm 3 1/2” - 5 1/8”
Rated high torque	1600 N·m 1180 ft·lbs
Rated low torque	6000 N·m 4420 ft·lbs
High speed	80 r/min
Low speed	20 r/min
Rated maximum working pressure	11Mpa 1590psi
Maximum fuel supply	100 L/min 26gpm
Dimensions	900 x 550 x 680 mm 35.4” x 21.7” x 26.8”
Weight	268kg 590lbs
