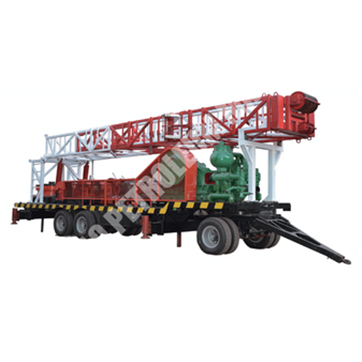

Name: SPT-1500 Drilling Rig
Brand: SHANDONG SAIGAO GROUP CORPORATION

Technical Specifications of SPT-1500 Drilling Rig

Drilling Depth(m)	1500	1000
Openning Diameter of Rotary Table(mm)	660
RPM of Rotary Table (r/min)	Positive and negative 37, 52, 84, 145
Hoist Capacity of Master Winch(t)	9
Hoist Capacity of Auxiliary Winch(t)	4
Kelly(mm)	10810810500
Drill Pipe(mm)	Φ899500 Φ1279500
Mast Structured	n
Effective Height (m)	15.5
Loading Capacity of Power Swivel(t)	50T
Loading Capacity of Traveling Block(t)	50T
Power(Kw)	110
Mud Pump Model	BW1200
Mud Pump Power(kw)	110
Weight (t)	35
Dimensions( L* W* H) (in operating mode) (m)	14.52.54.3(in travel condition) 113.715.7(in working condition)
