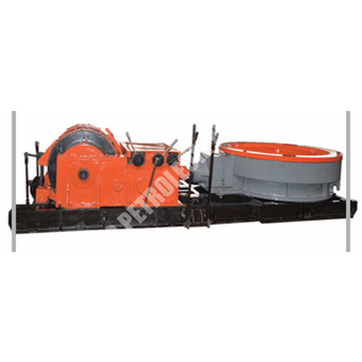

Name: JGZ-1220 DRILLING RIG
Brand: SHANDONG SAIGAO GROUP CORPORATION

Technical Specifications of JGZ-1220 Drilling Rig

Parameter	Specifications
Opening Diameter of Rotary Table(mm)	1220
The Max.Output Torque of the Rotary Table (KN.m)	70
RPM of Rotary Table (r/min)	Positive and negative 20, 29, 47,72(4Gears)
The Speed of the Winch(m/s)	1. 1/2. 4/4. 1 (3Gears)
The Max. Lifting of the Winch(single rope)(KN)	115
The Capacity of the Rope(m)	500
The Pulley Input Speed(r/min)	901
The Max.Lifting Force of the Pulley	5*6
The Max Hock Load(KN)	1050
Equipped with Power(kw)	The Diesel Engine G128ZLN-SM,1230 187KW(1500r/min) The Electric Motor 2XY280M-4 2*90KW(1480 r/min)
Weight (kg)	12500
Dimensions( L* W* H) (mm)	623025651750
