  • Circulating Swage

Circulating Swage

Saigao Circulating Swage is forged from high-grade steel materials and machined to the required specifications. After heat treatment and non-destructive testing, it is confirmed that the product is free of any defects. It can be connected to a square drill pipe to circulate mud, or it can be connected to a drill pipe to lift the casing string.


  • The top of Casing Circulating Swage connects to the hoses, the bottom connects to the casing.

  • Main body is made from AISI4145H alloy steel.

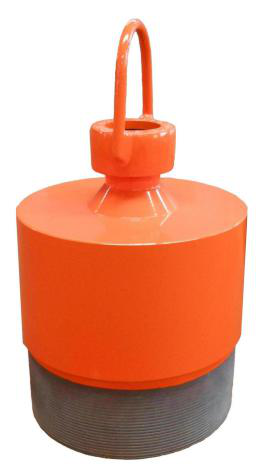

Product No.CS-01Product_No.CS-.pngProduct No.CS-01

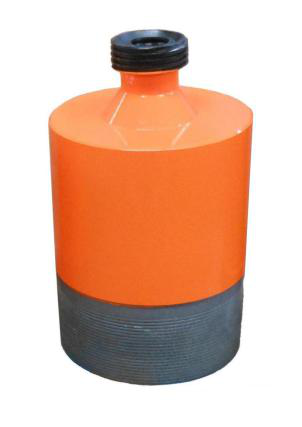

Product No.CS-01

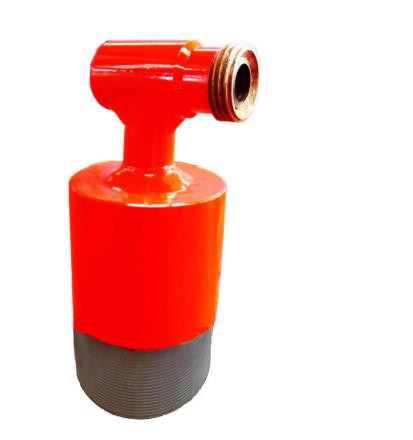

Product No.CS-02


Circulating Swage Main Technical Parameters

Size
(in)
Body OD Size(mm)ID size (mm)Top box connBottom Pin ConnLength
(mm)
W.P.
psi
4"12150.82" FIG1502F4" Casing thread50010000
4½"12150.82" FIG1502F4½" Casing thread
5"12850.82" FIG1502F5" Casing thread
5½"14550.82" FIG1502F5½" Casing thread
5¾"14850.82" FIG1502F5¾" Casing thread
6⅝"17850.82" FIG1502F6⅝" Casing thread
7"17950.82" FIG1502F7" Casing thread
7⅝"19550.82" FIG1502F7⅝" Casing thread
7¾"19850.82" FIG1502F7¾" Casing thread
7⅞"20250.82" FIG1502F7⅞" Casing thread
8⅝"22250.82" FIG1502F8⅝" Casing thread
9⅝"27050.82" FIG1502F9⅝" Casing thread
9⅞"27050.82" FIG1502F9⅞" Casing thread
10¾"27550.82" FIG1502F10¾" Casing thread
11¾"30050.82" FIG1502F11¾" Casing thread
12¾"32650.82" FIG1502F12¾" Casing thread
13⅜"34250.82" FIG1502F13⅜" Casing thread
13⅝"34850.82" FIG1502F13⅝" Casing thread
16"41050.82" FIG1502F16" Casing thread
16¾"42850.82" FIG1502F16¾" Casing thread
18⅝"47550.82" FIG1502F18⅝" Casing thread
20"51050.82" FIG1502F20" Casing thread
