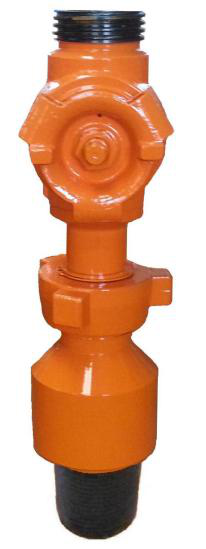

Drill Pipe Circulating Swage

Drill Pipe Circulating Swage

  • The top of Drill Pipe Circulating Swage connects to the hoses,the bottom connects to the Drill Pipe.

  • Main body is made from AISI4145H alloy steel.




Product No.DCS-01图片1.png

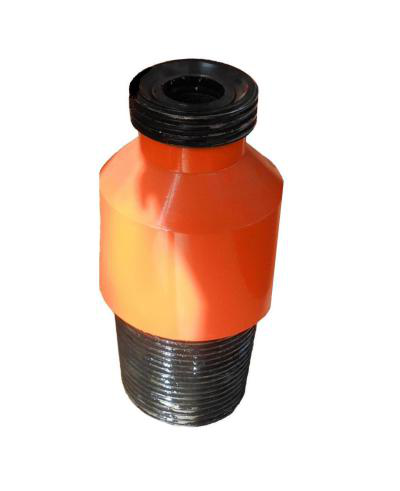

Product No.DCS-01




Drill Pipe Circulating Swage Main Technical Parameters

Size
(in)
Body OD Size(mm)ID size (mm)Top box connBottom Pin ConnLength
(mm)
W.P.
psi
2⅞"10550.82" FIG1502F2⅞"IF(NC31)30510000
3½"12150.82" FIG1502F3½"IF(NC38)
4"14650.82" FIG1502F3½"IF(NC38)
4½"15850.82" FIG1502F4"IF(NC46)
5"15850.82" FIG1502F4½"IF(NC50)
5½"18550.82" FIG1502FFH5½
